AC12450
Sierra reverse 'Y' adapters employ two male plugs with unique power isolation to supply a single female plug for overall user safety. Sierra reverse 'Y' adapters provide a 50A 125/250VAC power supply when only two 30A 125VAC receptacles are available. Replaces Marinco RY504-2-30.
- Unique power isolation
- Nickel-plated brass contacts
2 30A 125V male locking to 50A 125V female locking adapters
Max amperage: 30A
Max voltage: 250VAC
PVC jacket
Jacket rating: STW 600VAC @ 60°C
Nickel-plated brass contacts
Nylon molded plugs
SKU number
9620008907
Model
Power Systems
Model on label
TBD
Product Description

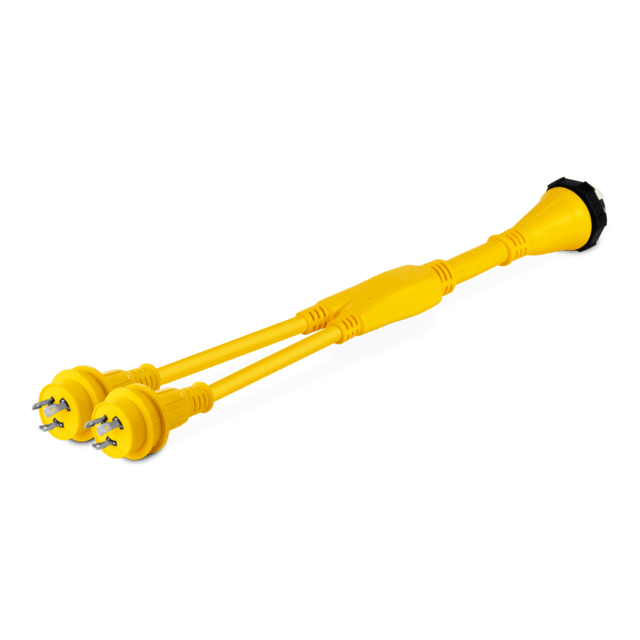

50A 125/250V (SS2-50R) Female to (2) 30A 125V (L5-30P) Male Shore Power Reverse "Y" Adapter
Publication Legacy Item Number
AC12450
Product Category
Shore Power
EAN-13
0808282386627
Dimensions parcel depth, ["]
3.54
Dimensions parcel height, ["]
17.72
Dimensions parcel width, ["]
5.31
Parcel weight, [lbs]
3.60
WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
Product Highlights
Unique power isolation
Adapter employs two male plugs with unique power isolation to supply a single female plug for overall user safety
Nickel-plated brass contacts
Resists corrosion in harsh weather and marine environments
