WH10620R

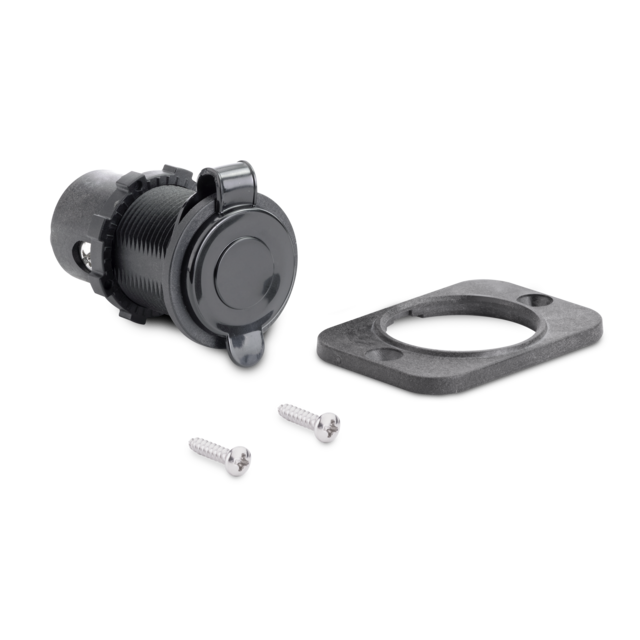

Sierra’s Trolling Motor Receptacle offers easy installation, water-tight sealing cap and O-ring seals, and corrosion resistant electrical components perfect for harsh marine environments. It accepts 16 to 6 AWG wire with no additional adapter needed, making it a cost effective option. Replaces Marinco 12VBR.
For 2 or 3-wire configurations of: 12V, 24V, 12/24V, 24/36V, or 36V systems
Watertight sealing cap
Corrosion-resistant, plated-brass electrical components
Standard 1 1/8" diameter mounting hole for easy installation
Mounting plate and locking ring for front and rear access installation
Max amp rating of 62A @ 36VDC when used with Sierra WH10620P plug
Accepts 16 to 6 AWG wire without the need of an expensive adapter
SKU number
9620009031
Model
Power Systems
Product Description
Trolling Motor Receptacle
Publication Legacy Item Number
WH10620R
Product Category
Shore Power
EAN-13
0808282388171
Dimensions parcel depth, ["]
2.30
Dimensions parcel height, ["]
3.10
Dimensions parcel width, ["]
5
