Dometic DPS-R135 AC/DC Adapter
Effortlessly transition from battery to mains power (100-240V) for uninterrupted appliance operations on any voyage. Designed to seamlessly integrate with the cutting-edge NRX Series compressor refrigerators and other 12/24V appliances, the Dometic DPS-R135 AC/DC Adapter automatically reverts to battery power (12/24V) when unplugged.
Connects 24V DC refrigerators or other appliances to the main power socket
Compatible with all Dometic refrigerators
Easy Quick-Connect wiring
Automatic switching DC<>AC
SKU number
9620013451
Model
DPSR
Model on label
SOY-2700500-463
Scope of delivery

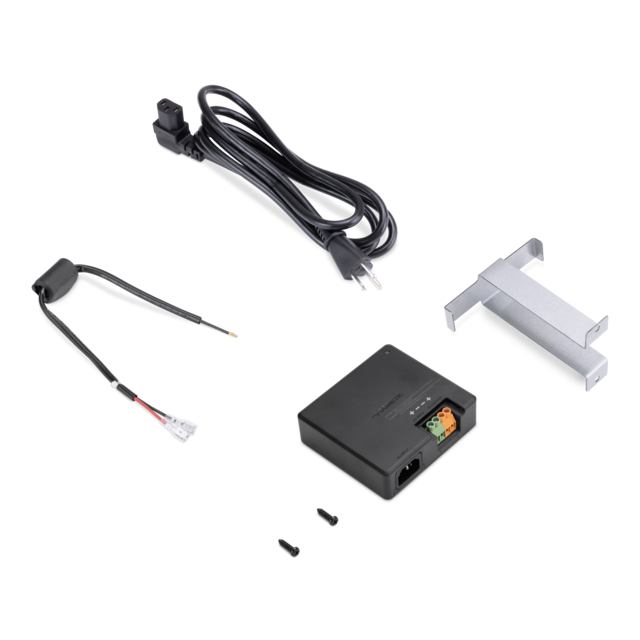

1x adapter, 1 x DC magnetic cable, 1x AC plug, 1 x mounting bracket, 2 x screws, 3 x manual
Product Description
Refrigeration power adapter plug, 100-240V~50/60Hz output 27V 5A
Dimensions product depth, [mm]
110
Dimensions product height, [mm]
100
Dimensions product width, [mm]
32
Net weight, [kg]
0.50
Input voltage (AC), [V]
100-240
Input voltage (DC), [V]
12/24
Rated input current (AC), [A]
AC100V:1.53A; AC240V:0.64A (88% energy efficiency）
Rated input current (DC), [A]
DC12V:10A; DC24V:5A
EAN-13
6975399593461
Dimensions parcel depth, [mm]
113
Dimensions parcel height, [mm]
326
Dimensions parcel width, [mm]
113
Parcel weight, [kg]
0.95
