AC12480

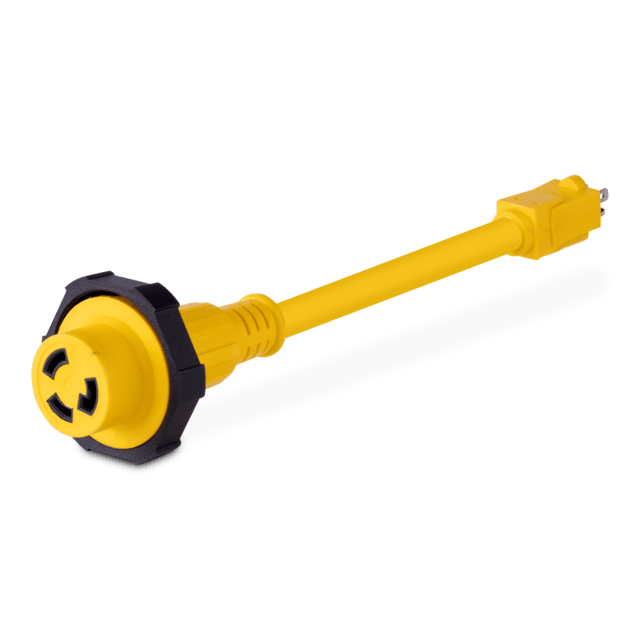

Pigtail Adapter, 15A 125V ( 5-15P) Male Straight Blade to 30A 125V (L5-30R) Female Locking

Sierra pigtail adapters allow the user to connect a dockside receptacle to a boatside inlet of a different power configuration. Sierra’s AC12480 adapter facilitates 15A 125V ( 5-15P) male straight blade to 30A 125V (L5-30R) female locking. This product replaces Marinco 104SPP.

$46.89
In StockArt nr: 9620008910 (AC12480)

Product Highlights

Molded nylon plugs
1 of 2

Molded nylon plugs

Heavy duty materials are ergonomic and easy to connect

Industry standard NMEA connections
2 of 2

Industry standard NMEA connections

Standard connections are compatible with all major brands

Use to connect a 15A 125VAC male straight blade dockside connector to a 30A 125VAC female locking boatside inlet

Max amperage: 15A

Max voltage: 125VAC

Cable size: 10 AWG

3 conductors

PVC jacket

Jacket rating: STW 600VAC @ 60°C

SKU number

9620008910

Model

Power Systems

Product Description

Pigtail Adapter, 15A 125V ( 5-15P) Male Straight Blade to 30A 125V (L5-30R) Female Locking

Publication Legacy Item Number

AC12480

Product Category

Shore Power

EAN-13

0808282386658

Dimensions parcel depth, ["]

1.97

Dimensions parcel height, ["]

19.29

Dimensions parcel width, ["]

5.91

Parcel weight, [lbs]

0.90

Sierra Shore Power Cordset - Installation Manual AMER3

Installation Manual

Download
