AC12510
Sierra pigtail adapters allow the user to connect a dockside receptacle to a boatside inlet of a different power configuration. Sierra’s AC12510 adapter facilitates 30A 125V (L5-30P) male to 15A 125V (5-15R) female. This product replaces Marinco P30-15.
- Molded nylon plugs
- Industry standard NMEA connections
Use to connect a 30A 125VAC male dockside connector to a 15A 125VAC boatside female inlet
Max amperage: 15A
Max voltage: 125VAC
Cable size: 10 AWG
3 conductors
PVC jacket
Jacket rating: STW 600VAC @ 60°C
Nickel-plated brass contacts
SKU number
9620008916
Model
Power Systems
Model on label
TBD
Product Description

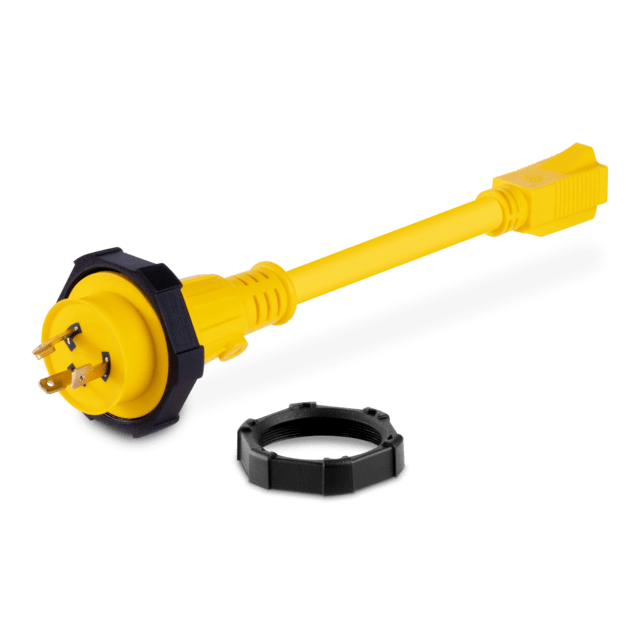

Pigtail Adapter, 30A 125V (L5-30P) Male to 15A 125V (5-15R) Female
Publication Legacy Item Number
AC12510
Product Category
Shore Power
EAN-13
0808282386689
Dimensions parcel depth, ["]
1.97
Dimensions parcel height, ["]
19.29
Dimensions parcel width, ["]
5.91
Parcel weight, [lbs]
0.90
WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
Product Highlights
Molded nylon plugs
Heavy duty materials are ergonomic and easy to connect
Industry standard NMEA connections
Standard connections are compatible with all major brands
