• The CFX5 75 DZ capacity holds up to 113 x 12 oz cans – a large size for weekend adventures, week-long camping trips, and extended nomadic travel.
• Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

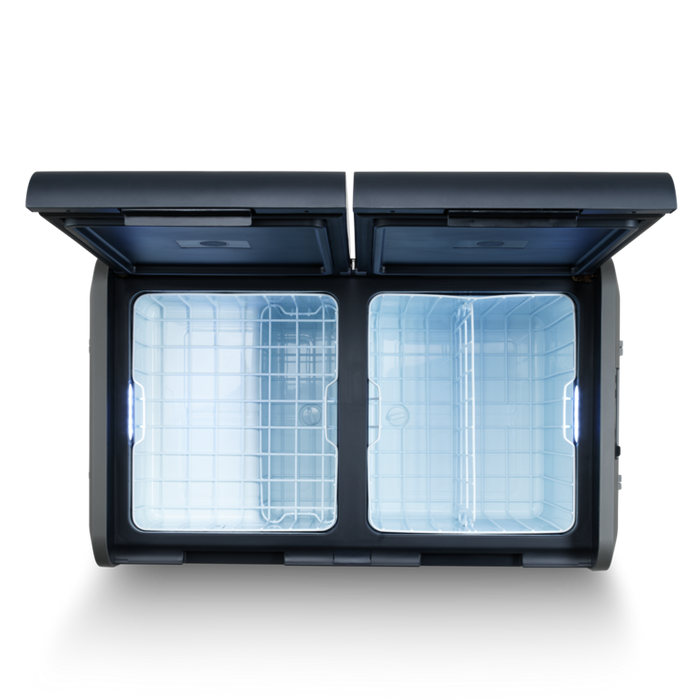

• Two cooling zones allow you to bring refrigerated and frozen foods all at once.
• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Electrical

• Category Status Electrical: Ready
• Input voltage (AC), [V]: 100240
• Input voltage min (AC), [V]: 100
• Input voltage max (AC), [V]: 240
• Input voltage (DC), [V]: 1224
• Rated input current (AC), [A]: 1.11A at 100V, 0.47A at 240V
• Rated input current (DC), [A]: 4.4A at 24V, 9.7A at 12V
• Input rated current at 12V, [A]: 9.7
• Input rated current at 24V, [A]: 4.4
• Rated input power, [W]: 61
• Rated input power (AC), [W]: 61
• Input frequency, [Hz]: 5060
• Cut-in voltage, [V]: MID: 12.2±0.3; 25.3±0.3
• Cut-off voltage, [V]: MID: 11.2±0.3; 24.1±0.3
• Battery type: NA
• Priority circuit (Integrated): True
• Power consumption, [W]: 61
• Plug type: B

Installation

• Installation Type: FS
• Category Status Installation: Ready

Logistics

• Category Status Logistics: Ready
• Dimensions parcel depth, ["]: 21.06295
• Dimensions parcel height, ["]: 20.4724
• Dimensions parcel width, ["]: 36.81095
• Parcel weight, [lbs]: 68.5755
• Quantity per package: 1

Measures

• Category Status Measures: Ready
• Dimensions product depth, ["]: 19.48815
• Dimensions product height, ["]: 18.58264
• Dimensions product width, ["]: 35.11804
• Net weight, [lbs]: 59.7555
• Total volume (IEC 62552-3), [l]: 75
• Storage volume - total volume (ANSI/AHAM HRF-1-2007), [cu.ft]: 75
• Power Supply Cable Length AC: 2m
• Power Supply Cable Length DC: 1p5m
• Cable length supply cable, [m]: 2
• Amount of cans (12oz/375ml): 113

Performance

• Noise (EN60704-1 & 60704-2-14), [dB(A)]: 44
• Category Status Performance: Ready
• Noise Class EU20192016: D
• Annual energy consumption at AC, North America (DOE - 10 CFR 430), [kWh/yr]: 167
• Energy Consumption 12VDC (4 °C large zone, -15 °C small zone, 32 °C ambient), [Ah/h]: 2.76
• Climate class (EN 62552): NT
• Cooling compartment category: Freshfoodstoragecompartment
• Power consumption - Cooling mode (ISO 5151), [W]: 61
• Temperature Range: p20m22
• Insulation Thickness: 50
• Operating temperature min, [°C]: 16
• Operating temperature max, [°C]: 43
• Insulation Type: PU

Product Information

• Web Filter Display Color: Black;Brown
• Color: SlateAndOre
• USB Port: Yes
• WIFI Capability: Yes
• Connectivity Type: Bluetooth;WiFi;Interact
• Bluetooth Module Name: ESP32-WROVER-E
• Basket: Yes
• Threaded inserts in base for mounting: M6
• Drain plug: Yes
• Anti-condensation coil: Yes
• Single or Dual Zone: Dual
• Locking system: MechanicalOpening
• Thermostat control: ElectronicThermostat
• Hinge type: Righthinged
• Interior light: YesLED
• Remote operation type: Bluetooth
• Remote control: True
• Door Type: Solid
