SKU FS40920
409 Series Fuse Block | FS40920
by SIERRA
Availability:
in stock, ready to be shipped
Original price
$53.19
-
Original price
$53.19
Original price
$53.19
$53.19
-
$53.19
Current price
$53.19

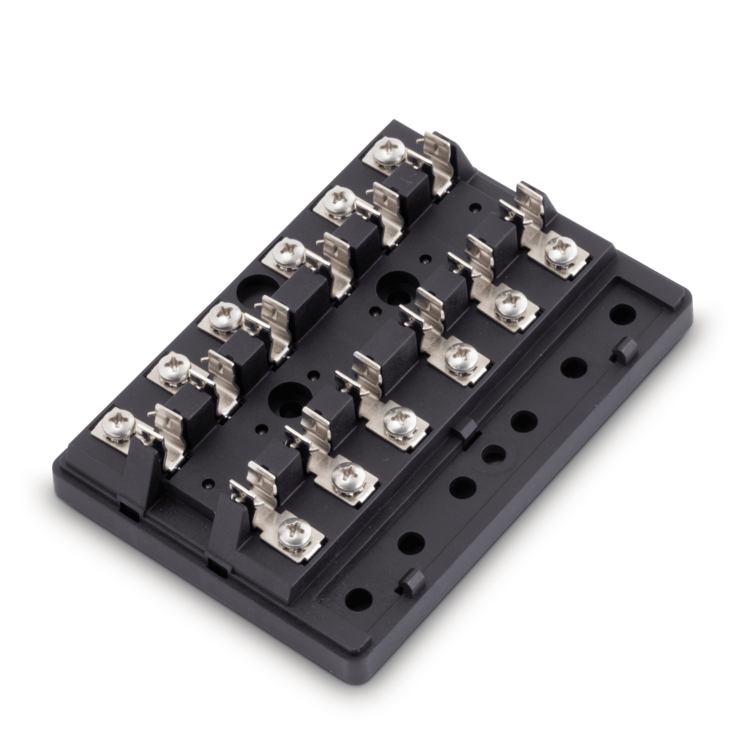

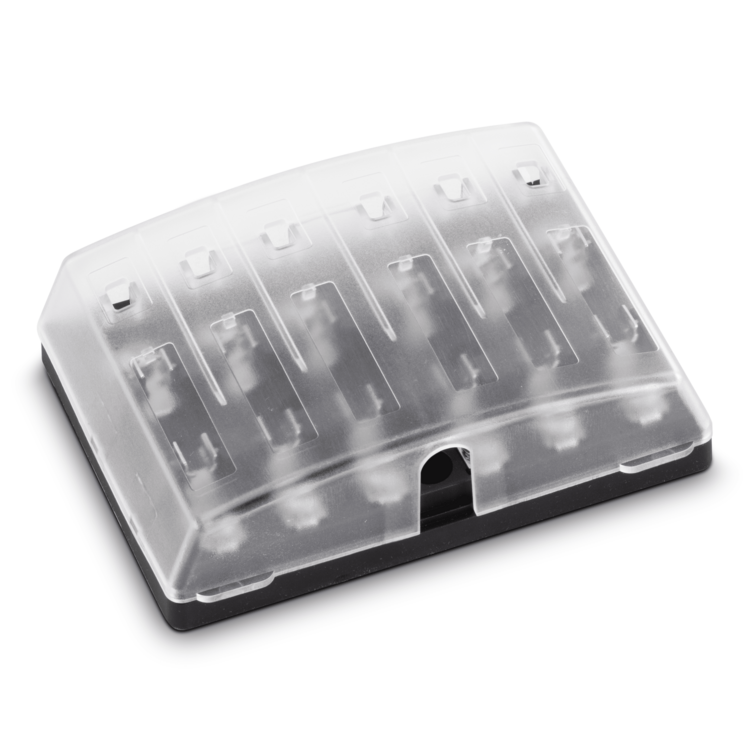

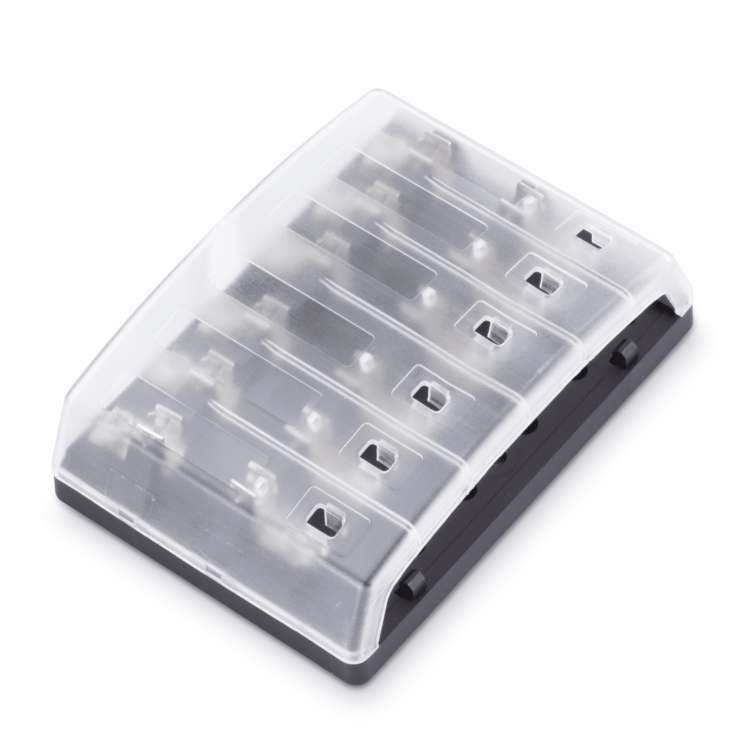

6 gang AGC independent source with cover. Accepts fast-acting (AGC), time-delay (MDL), and 3AG glass fuses. LED indication of blown fuses. PBT, glass fiber reinforced base material. Transparent cover with recessed area for labels & storage for 6 spare fuses (60pc. label set included).
- Accepts Fast-acting (AGC), Time-delay (MDL) and 3AG Glass fuses
- Dimensions: 129mm x 91mm
- Max Operating Voltage: 32VDC
- Rating per Circuit: 30A
- Cumulative Rating per block: 100A
- Screw Size: M4
- Terminal Stud Size: M5
- 60pc. label set included
