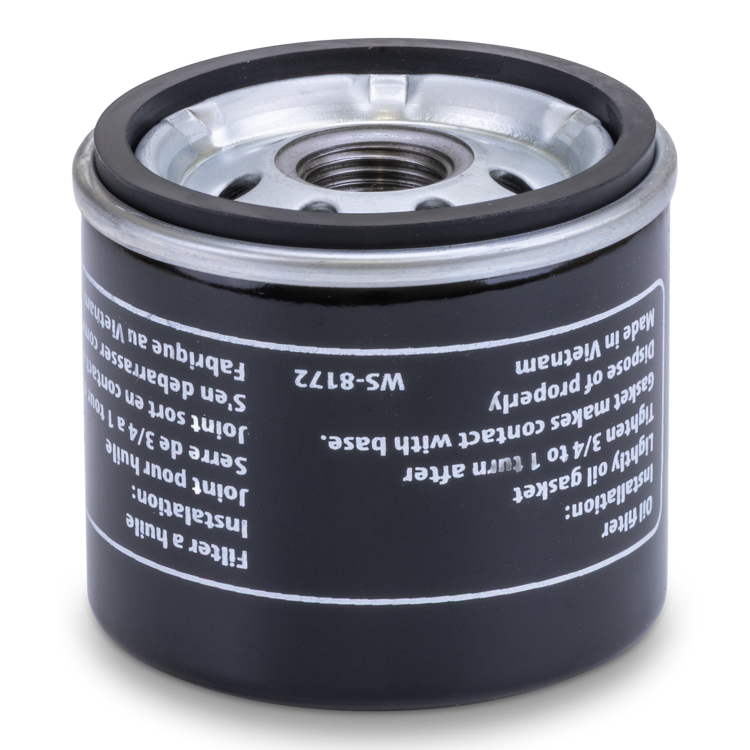

Black Prime Line oil filter with white text on a white background

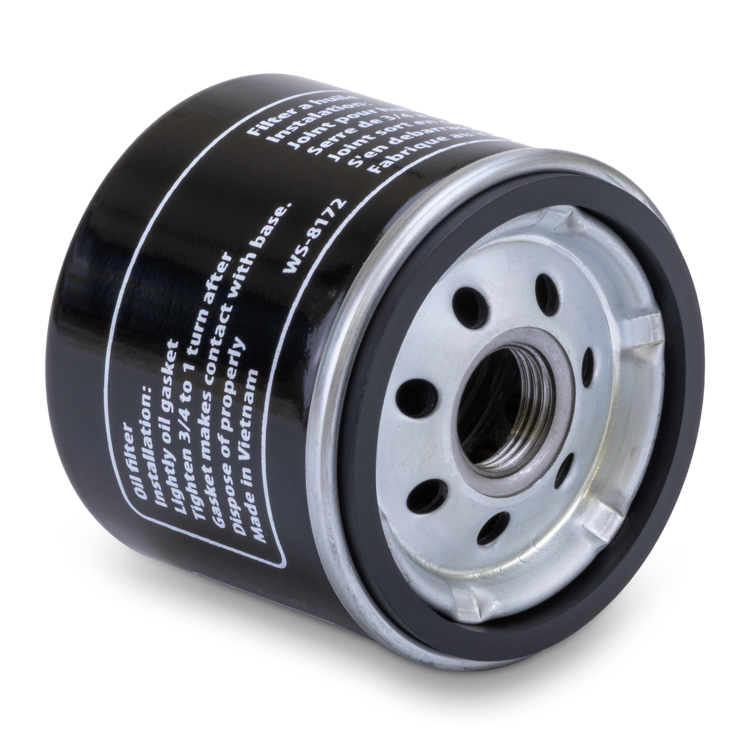

Prime Line oil filter with black and silver design on a white background

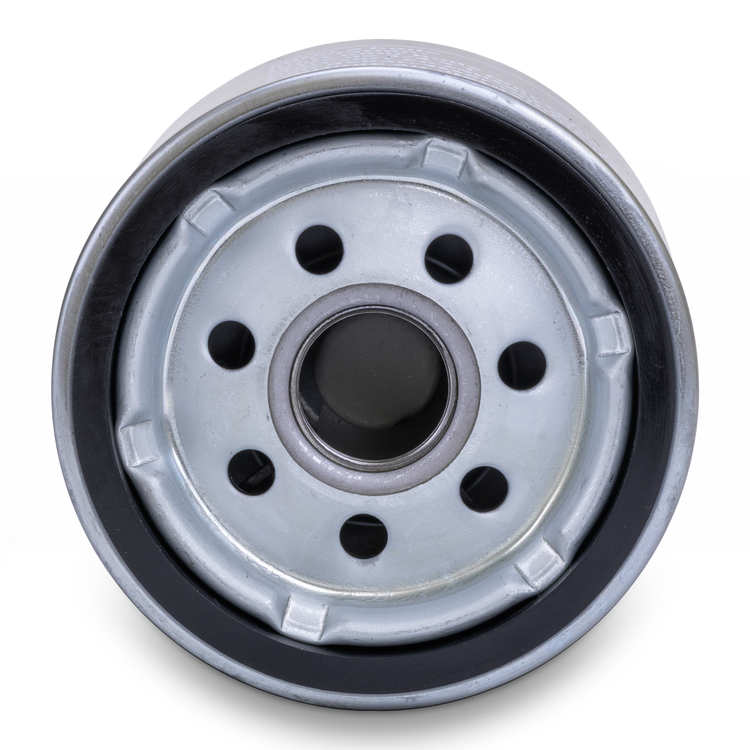

Bottom threaded side of a Prime Line oil filter on a white background
Black Prime Line oil filter with white text on a white background
Prime Line oil filter with black and silver design on a white background
Bottom threaded side of a Prime Line oil filter on a white background
SKU 27-07114

Oil Filter | 7-07114

by Prime Line
Availability:
in stock, ready to be shipped
$18.69 - $18.69
$18.69
$18.69 - $18.69
$18.69
Premium oil filter engineered for Kohler-powered equipment including John Deere, Bobcat, Ransomes, and Woods models. Features 25-micron filtration for superior engine protection, anti-drain valve to prevent dry starts, and 8–11 PSI pressure relief. Fits 3/4"-16 thread with 3" outer diameter and 2.65" height. Ideal for mid-size hydrostatic and compact utility machines. OEM-quality performance at competitive pricing.
OEM INTERCHANGE

Ariens

  • 20715100
  • 21397200

 Arnold: OF-186

 Cub Cadet: 12-050-08

 Ferris: 5021144X1

 Gravely: 21397200

 Husqvarna: 531307393

 Hustler: 747303

 John Deere:

  • AM101207
  • GY20577
  • KH1205008

 Kohler

  • 12 050 01
  • 12 050 01-S
  • 12 050 01-S1
  • 12 050 08
  • 12 050 08-S

 Laser: 93123

 Oregon: 83-284

 Rotary: 7916

 Stens: 120-523

 Sunbelt: B10F286

 Toro: 98020

 Woods: 70820
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Pressure Relief: 8-11 PSI
  • UNSPSC: 40161504
  • Height: 2.65"; Micron: 25
  • Anti-Drain: Yes
  • O.D.: 3"
  • Thread Size: 3/4"-16
  • Bobcat/Ransomes: For ZT200 and mid-size hydro
  • John Deere: For models with Kohler engines
  • Kohler: For CH18 - 20, CV11 - 15, CV18, CV20, CV22 and CV25
  • Woods: For models with Kohler engines

Logistics

  • Dimensions parcel depth, ["]: 3.10007254
  • Dimensions parcel height, ["]: 2.90007294
  • Dimensions parcel width, ["]: 2.80007314
  • Parcel weight, [lbs]: 0.584325

Engine Fitment for 27-07114

Brand Engine Model Year Serial Number Range Horsepower
Kohler CH11 1990-2007 — 11
Kohler CH12.5 1990-2007 — 12.5
Kohler CH13 1990-2007 — 13
Kohler CH14 1990-2007 — 14
Kohler CH15 1990-2007 — 15
Kohler CH16 1990-2007 — 16
Kohler CV12.5 1991-2002 — 12.5
Kohler CV13 1991-2002 — 13
Kohler CV14 1991-2002 — 14
Kohler CV15 1991-2002 — 15
Kohler CV16 1991-2002 — 16
Kohler CV490 1991-2002 — 17
Kohler CV491 1991-2002 — 17
Kohler CV493 1991-2002 — 18
Kohler CV492 1991-2002 — 18
Kohler CV460 1991-2002 — —
Kohler TH16 1996-2000 — 16
Kohler TH18 1996-2000 — 18
Kohler TH575 1996-2000 — 18
Kohler LV675 2000-2001 — 23
Kohler LV680 2000-2001 — 24
Kohler LH630 2011-2013 — 22
Kohler LH685 2011-2013 — 23
Kohler LH690 2011-2013 — 24
Kohler LH755 2011-2013 — 28
Kohler SV470 2012-2014 — 15
Kohler SV471 2012-2014 — 15
Kohler SV480 2012-2014 — 16
Kohler SV530 2012-2014 — 17
Kohler SV541 2012-2014 — 18
Kohler SV540 2012-2014 — 18
Kohler SV590 2012-2014 — 19
Kohler SV591 2012-2015 — 19
Kohler SV710 2012-2014 — 20
Kohler SV600 2012-2014 — 20
Kohler SV601 2012-2014 — 20
Kohler SV610 2012-2014 — 21
Kohler SV715 2012-2014 — 22
Kohler SV620 2012-2014 — 22
Kohler SV720 2012-2014 — 23
Kohler SV725 2012-2014 — 24
Kohler SV830 2012-2014 — 25
Kohler SV730 2012-2014 — 25
Kohler SV735 2012-2014 — 26
Kohler SV840 2012-2014 — 27
Kohler SV740 2012-2014 — 27
Kohler CV17 2013-UP — 17
Kohler CH18 2013-UP — 18
Kohler CH620 2013-UP — 19
Kohler CH621 2013-UP — 19
Kohler CV18 2013-UP — 19
Kohler CV620 2013-UP — 19
Kohler ECV630 2013-UP — 19
Kohler CH20 2013-UP — 20
Kohler KT715 2013-UP — 20
Kohler CH640 2013-UP — 20.5
Kohler CV640 2013-UP — 20.5
Kohler CH641 2013-UP — 20.5
Kohler CV20 2013-UP — 20.5
Kohler ECV650 2013-UP — 21
Kohler CH22 2013-UP — 22
Kohler CH670 2013-UP — 22
Kohler CV22 2013-UP — 22
Kohler CV670 2013-UP — 22
Kohler KT725 2013-UP — 22
Kohler CH682 2013-UP — 22.5
Kohler CH680 2013-UP — 22.5
Kohler CV680 2013-UP — 22.5
Kohler CV682 2013-UP — 22.5
Kohler ECH730 2013-UP — 23
Kohler KT730 2013-UP — 23
Kohler CH23 2013-UP — 23
Kohler CV23 2013-UP — 23
Kohler ECV730 2013-UP — 23
Kohler CV730 2013-UP — 23.5
Kohler CH730 2013-UP — 23.5
Kohler CH732 2013-UP — 23.5
Kohler CV732 2013-UP — 23.5
Kohler KT735 2013-UP — 24
Kohler CH25 2013-UP — 25
Kohler CH742 2013-UP — 25
Kohler ECV740 2013-UP — 25
Kohler CH740 2013-UP — 25
Kohler CV25 2013-UP — 25
Kohler CV742 2013-UP — 25
Kohler CV740 2013-UP — 25
Kohler ECH740 2013-UP — 25
Kohler KT740 2013-UP — 25
Kohler CV26 2013-UP — 26
Kohler KT745 2013-UP — 26
Kohler CH735 2013-UP — 26
Kohler CH26 2013-UP — 26
Kohler ECV749 2013-UP — 26.5
Kohler CV750 2013-UP — 27
Kohler CH750 2013-UP — 27
Kohler CH752 2013-UP — 27
Kohler CV745 2013-UP — 28
Kohler CH745 2013-UP — 28
Kohler ECH749 2013-UP — 29
Kohler CV624 — 18
Kohler PCV680 — 22
