Name: Solenoid | 7-01860-1
Brand: Prime Line
SKU: 27-01860-1
Price: 32.49 USD
Availability: InStock

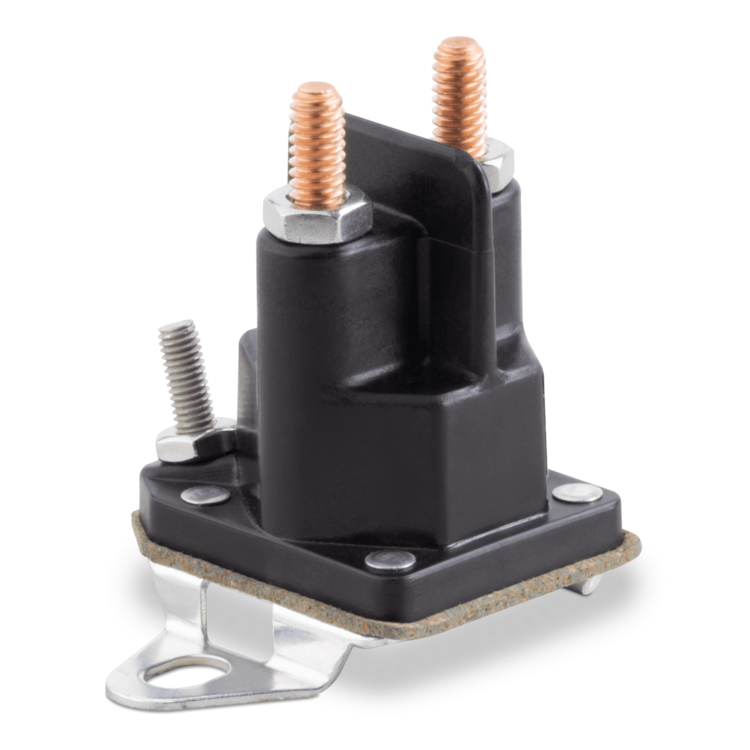

Black Prime solenoid on a white background

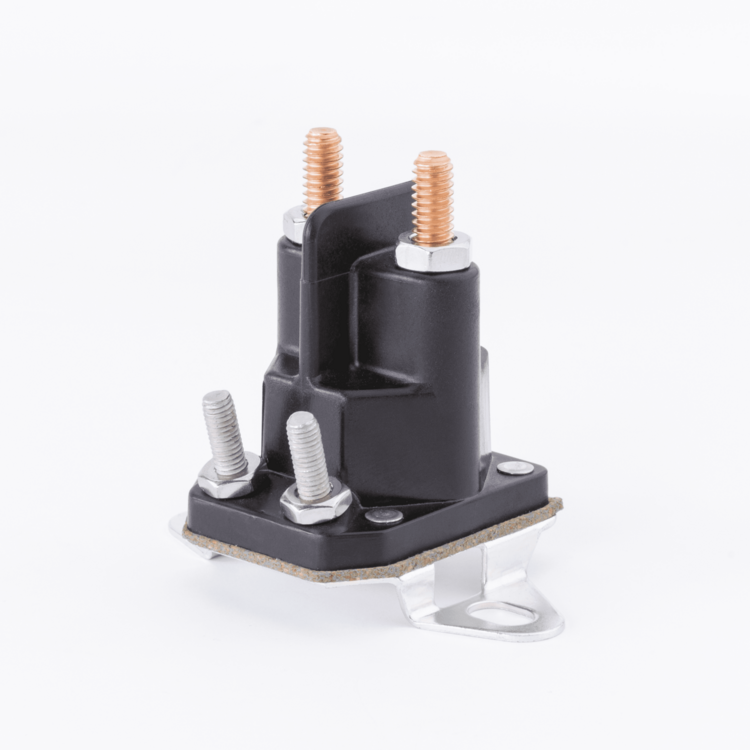

Prime Line 7-01860-1 solenoid on a white background

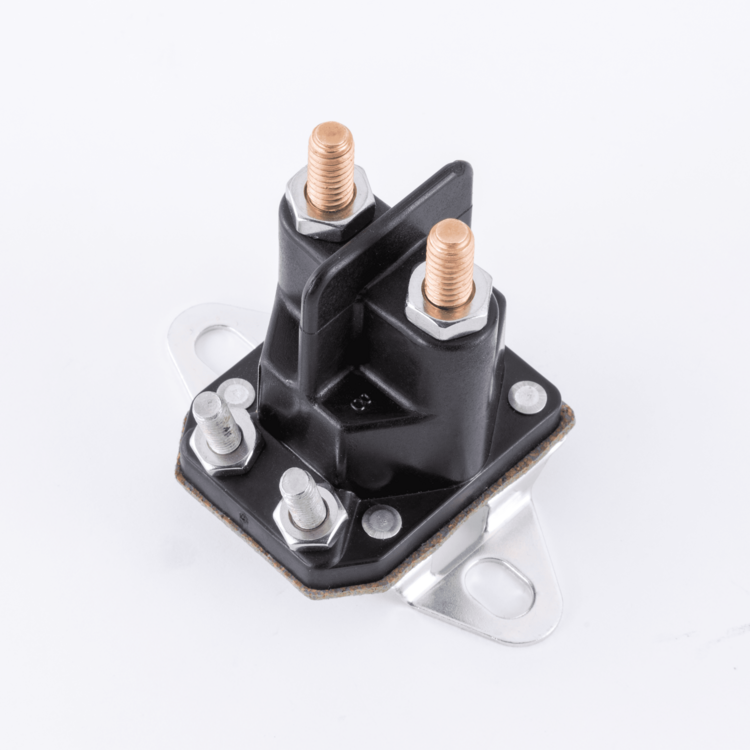

Black electrical component with screws on a white background

SKU 27-01860-1

Solenoid | 7-01860-1

4-pole, 12V-200A intermittent duty solenoid

by Prime Line

Availability:

in stock, ready to be shipped

$32.49 - $32.49

$32.49

$32.49 - $32.49

$32.49

The Prime Line 7-01860-1 4-pole, 12V-200 amp intermittent duty solenoid features spade terminal adapters and is grounded through a battery switch. Replaces select Arnold, Bolens, Grasshopper, Lawn-Boy & Toro solenoids. See OEM interchange for the complete list of replacement information.

12V - 200 amp intermittent duty
Load current for battery ignition
Grounded thru battery switch
4 pole
12 Volt DC
WIth spade terminal adapters

OEM INTERCHANGE

Ariens: 03551000

Arnold: 490-250-0013

AYP: 192507

Bolens: 1752137

Gilson: 202655

Grasshopper: 184251

Gravely: 045071

Laser: 98215

Lawn-Boy: 740207

Oregon: 33-334

Rotary: 5933

Simplicity: 1700751

Snapper: 1-8604

Stens: 435-103

Toro

28-4210
47-1910
92-9845

Toro/Wheelhorse

110162
110167

WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov

Features

12V - 200 amp intermittent duty
Load current for battery ignition
Grounded thru battery switch
4 pole
12 volt DC
With spade terminal adapters

Specifications

Logistics

Dimensions parcel depth, ["]: 2.80007314
Dimensions parcel height, ["]: 4.85006904
Dimensions parcel width, ["]: 7.00006474
Parcel weight, [lbs]: 0.33516
