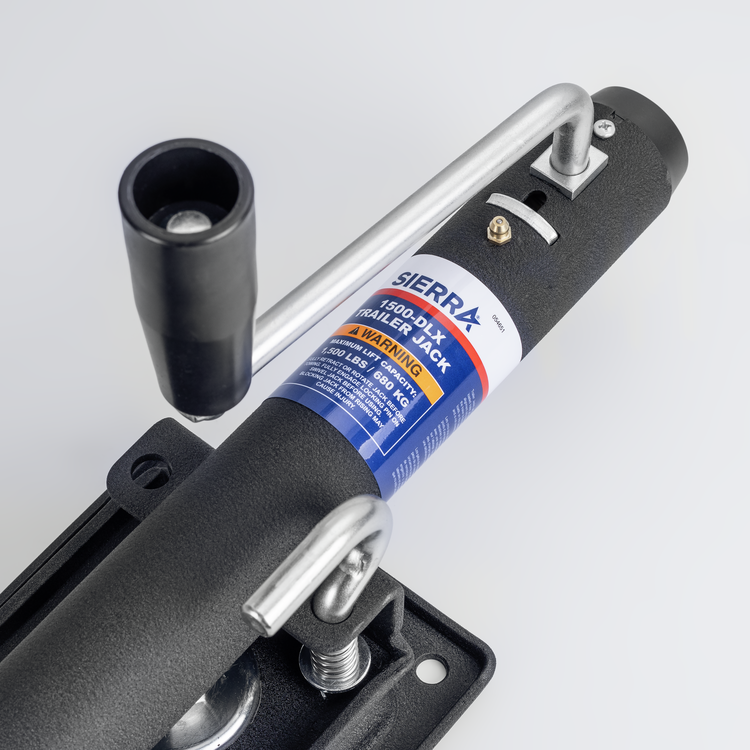

A Sierra 1500-DLX trailer jack on a white background
1500-DLX Trailer Jack
1500-DLX Trailer Jack
1500-DLX Trailer Jack

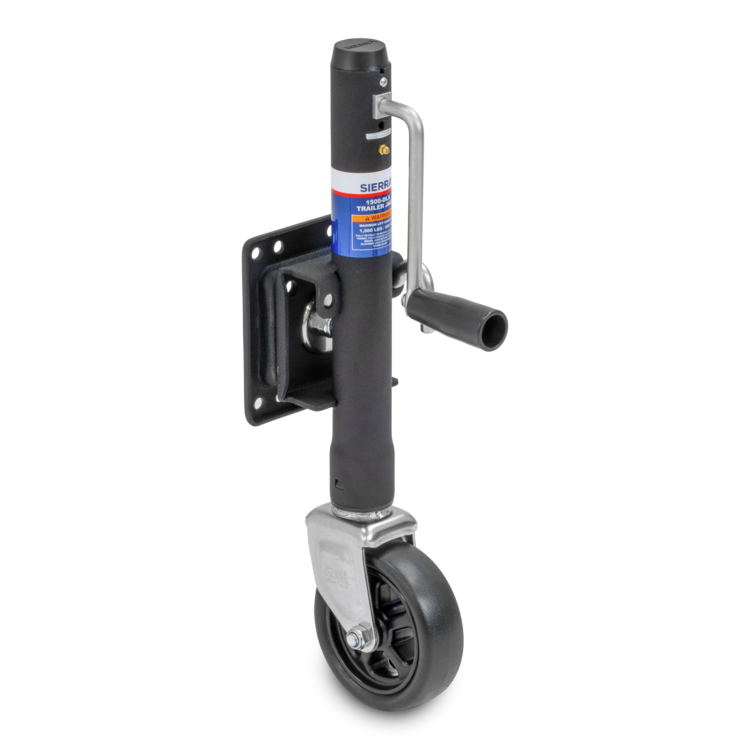

A Sierra 1500-DLX trailer jack on a white background
SKU 054651-10

1500-DLX Trailer Jack

1,500 lbs capacity & 10" lift travel

by SIERRA
Availability:
in stock, ready to be shipped
$119.99 - $119.99
$119.99
$119.99 - $119.99
$119.99

Sierra’s 1500-DLX Trailer Jack features a 1500 lb load capacity, rugged 6" spoked wheel, and fixed caster rotation. Designed and built to stringent OEM specifications and backed by Sierra’s limited one year warranty, this is the last trailer jack you will ever need. Fits tongues up to 3" x 5". Mounting hardware included.

Features

  • Rugged 6" spoked wheel
  • Mounting hardware included
  • Fits tongues up to 3" x 5"
  • 1,500 lbs capacity
  • 10" lift travel
  • Fixed caster rotation
  • Grease port for power screw
  • Inner/outer tube bushing

Applications

Boat application icon Boat Trailers
RV application icon ATV & Snowmobile Trailers
Vans & Conversions application icon Utility Trailers

Warranty

This product is backed by Sierra's one-year warranty. Read more about warranties here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Rugged 6" spoked wheel
  • Mounting hardware included
  • 1500 lbs capacity
  • 10" lift travel
  • Fixed caster rotation
  • 1 power screw grease port
  • Included inner/outer tube bushing
  • Standard handle
  • Zinc-plated undercoat with sealed passivation inner tube & caster surface finish
  • Black, electrophoretic undercoat and black, high-texture topcoat surface finish on outer tube & swivel mount

Logistics

  • Dimensions parcel depth, ["]: 5.999988
  • Dimensions parcel height, ["]: 7.2499855
  • Dimensions parcel width, ["]: 23.999952
  • Parcel weight, [lbs]: 17.00055
Tongue Size

Fits tongues up to 3" x 5"

Load Capacity

1,500 lbs

Lift Travel Distance

10"

Grease Ports

1 Power Screw Grease Port

Trusted by the biggest OEM's

Ergonomic Handle

Standard durable handle on 1300-ST, 1500DW-ST & 1500-DLX models, and a premium non-slip ergonomic handle on the 1500-PRO.

Built to Last

Inner and outer tubes and casters are treated with corrosion-resistant coatings to withstand salt and freshwater environments. Varies by model.

Easy Installation

Surface-finish matched mounting brackets, bolts, nuts & washers included with every trailer jack.



Compare Our Trailer Jacks

- 1300-ST 1500DW-ST 1500-DLX 1500-PRO
Part Number 054640-10 054645-10 054651-10 054658-10
Capacity 1,300lbs 1,500lbs 1,500lbs 1,500lbs
Lift Travel 10" 10" 10" 12"
Wheel 6” Spoked Dual 6” Solid 6” Spoked 8” Spoked
Caster Rotation Fixed Fixed Fixed Independent
Grease Ports 1– Power Screw 1– Power Screw 1– Power Screw 2– Power Screw & Bevel Gears
Handle Grip Standard Standard Standard Premium
Inner/OuterTube Bushing - - Included Included
Extended, Sleeved Pull Pin - - - Included
SurfaceFinish - Inner Tube and Caster Zinc-Plated Undercoat w/Sealed Passivation Zinc-Plated Undercoat w/Sealed Passivation Zinc-Plated Undercoat w/Sealed Passivation Zinc-Plated Undercoat w/Sealed Passivation
SurfaceFinish - Outer Tube and Swivel Mount Zinc-Plated Undercoat Black, Powder Topcoat Zinc-Plated Undercoat Black, Powder Topcoat Black, Electrophoretic Undercoat Black, High-Texture Topcoat Black, Electrophoretic Undercoat Black, High-Texture Topcoat
