• The 35L capacity holds up to 50 x 12 oz cans – a versatile size for up to four people’s weekend adventures and long solo trips.
• Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

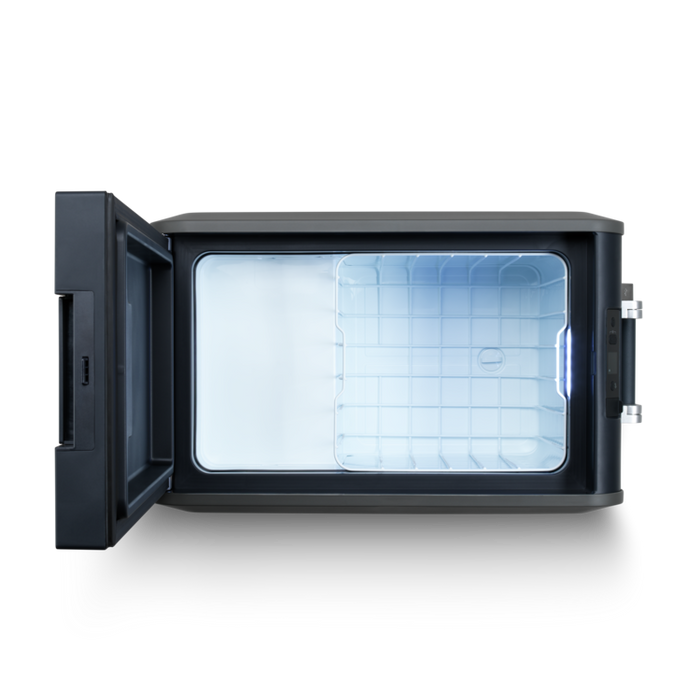

• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Electrical

• Category Status Electrical: Ready
• Input voltage (AC), [V]: 100240
• Input voltage min (AC), [V]: 100
• Input voltage max (AC), [V]: 240
• Input voltage (DC), [V]: 1224
• Rated input current (AC), [A]: 0.90A at 100V, 0.38A at 240V
• Rated input current (DC), [A]: 3.4A at 24V, 7.6A at 12V
• Input rated current at 12V, [A]: 7.6
• Input rated current at 24V, [A]: 3.4
• Rated input power, [W]: 47
• Rated input power (AC), [W]: 47
• Input frequency, [Hz]: 5060
• Cut-in voltage, [V]: MID: 12.2±0.3; 25.3±0.3
• Cut-off voltage, [V]: MID: 11.2±0.3; 24.1±0.3
• Battery type: NA
• Priority circuit (Integrated): True
• Power consumption, [W]: 47
• Plug type: B

Installation

• Installation Type: FS
• Category Status Installation: Ready

Logistics

• Category Status Logistics: Ready
• Dimensions parcel depth, ["]: 28.7401
• Dimensions parcel height, ["]: 17.91335
• Dimensions parcel width, ["]: 17.12595
• Parcel weight, [lbs]: 41.895
• Quantity per package: 1

Measures

• Category Status Measures: Ready
• Dimensions product depth, ["]: 27.32278
• Dimensions product height, ["]: 16.02359
• Dimensions product width, ["]: 15.66926
• Net weight, [lbs]: 36.603
• Total volume (IEC 62552-3), [l]: 36
• Storage volume - total volume (ANSI/AHAM HRF-1-2007), [cu.ft]: 36
• Power Supply Cable Length AC: 2m
• Power Supply Cable Length DC: 2m
• Cable length supply cable, [m]: 2
• Amount of cans (12oz/375ml): 50

Performance

• Noise (EN60704-1 & 60704-2-14), [dB(A)]: 41
• Category Status Performance: Ready
• Noise Class EU20192016: C
• Annual energy consumption at AC, North America (DOE - 10 CFR 430), [kWh/yr]: 130
• Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]: 1.11
• Climate class (EN 62552): NT
• Cooling compartment category: Freshfoodstoragecompartment
• Power consumption - Cooling mode (ISO 5151), [W]: 47
• Temperature Range: p20m22
• Insulation Thickness: 55
• Operating temperature min, [°C]: 16
• Operating temperature max, [°C]: 43
• Insulation Type: PU

Product Information

• Web Filter Display Color: Black;Brown
• Color: SlateAndOre
• USB Port: Yes
• WIFI Capability: Yes
• Connectivity Type: Bluetooth;WiFi;Interact
• Bluetooth Module Name: ESP32-WROVER-E
• Basket: Yes
• Threaded inserts in base for mounting: M6
• Drain plug: Yes
• Anti-condensation coil: Yes
• Single or Dual Zone: Single
• Locking system: MechanicalOpening
• Thermostat control: ElectronicThermostat
• Hinge type: Top
• Interior light: YesLED
• Remote operation type: Bluetooth
• Remote control: True
• Door Type: Solid
