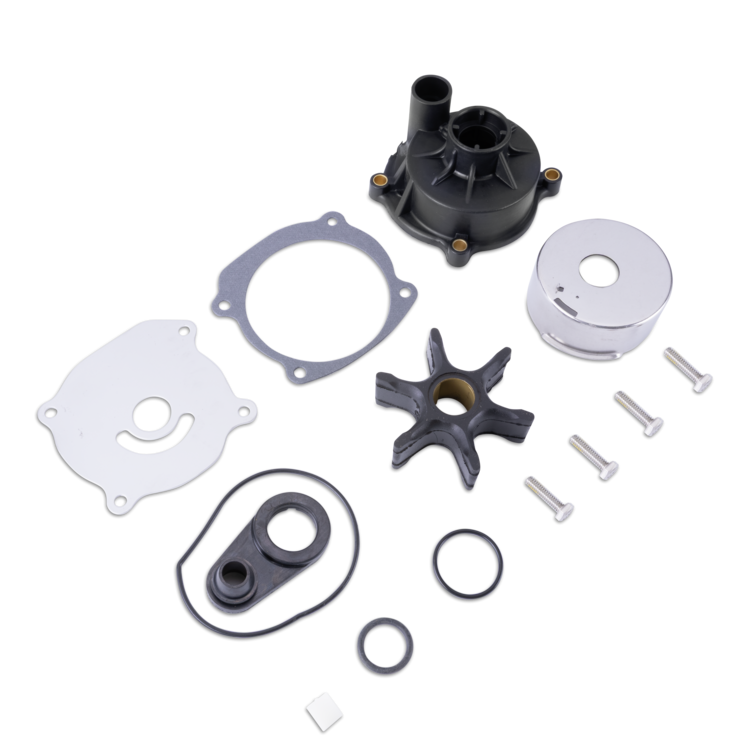

A water pump gasket kit with various components including a black plastic water pump, impeller, gaskets, O-rings, and mounting screws, arranged on a clean white background.
SKU 18-3476

Johnson/Evinrude Outboard Water Pump Repair Kit with Housing | 18-3476

For Johnson/Evinrude 90 (2013 & Up), 115/130 (2009 & Up)

by SIERRA
Availability:
in stock, ready to be shipped
$112.59 - $112.59
$112.59
$112.59 - $112.59
$112.59

The Sierra 18-3476 water pump repair kit for Johnson/Evinrude 90 (2013 & Up), 115/130 (2009 & Up) includes everything needed to repair your outboard water pump. This product directly replaces Johnson/Evinrude's 5007556 repair kit.

Kit includes

  • Plate, Outer Wear | 18-4579
  • Insert Cup
  • Water Pump Housing
  • Impeller Gasket | 18-2557-9
  • Impeller (w/ Key) | 18-3059
  • Impeller Key | 18-3299
  • O-Ring | 18-7143-9, 18-7963
  • Grommet, Pump to Exhaust Housing | 18-1821
OEM INTERCHANGE

Johnson/Evinrude Outboard: 5007556
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • For: Johnson/Evinrude 90 (2013 & Up), 115/130 (2009 & Up)
  • Plate, Outer Wear | 18-4579
  • Kit Includes:
  • Insert Cup
  • Water Pump Housing
  • Impeller Gasket | 18-2557-9
  • Impeller (w/ Key) | 18-3059
  • Impeller Key | 18-3299
  • O-Ring | 18-7143-9, 18-7963
  • Grommet, Pump to Exhaust Housing | 18-1821

Logistics

  • Dimensions parcel depth, ["]: 8.25
  • Dimensions parcel height, ["]: 4.5
  • Dimensions parcel width, ["]: 4.5
  • Parcel weight, [lbs]: 1.17306

Engine Fitment for 18-3476

Brand Engine Model Year Serial Number Range Horsepower
Johnson/Evinrude Outboard E115DHXSES 2009 — 115
Johnson/Evinrude Outboard E115DBXSEA 2009 — 115
Johnson/Evinrude Outboard E115DPXSEA 2009 — 115
Johnson/Evinrude Outboard E115DCXSEC 2009 — 115
Johnson/Evinrude Outboard E115DSLSEA 2009 — 115
Johnson/Evinrude Outboard E115DHLSES 2009 — 115
Johnson/Evinrude Outboard E115DPLSEA 2009 — 115
Johnson/Evinrude Outboard E115HSLSES 2009 — 115
Johnson/Evinrude Outboard E130DPXSES 2009 — 130
Johnson/Evinrude Outboard E130DCXSES 2009 — 130
Johnson/Evinrude Outboard E130DSLSES 2009 — 130
Johnson/Evinrude Outboard E130DPLSES 2009 — 130
Johnson/Evinrude Outboard E115DCXISF 2010 — 115
Johnson/Evinrude Outboard E115DHXISC 2010 — 115
Johnson/Evinrude Outboard E115DBXISM 2010 — 115
Johnson/Evinrude Outboard E115DPXISF 2010 — 115
Johnson/Evinrude Outboard E115DPXISM 2010 — 115
Johnson/Evinrude Outboard E115DBXISF 2010 — 115
Johnson/Evinrude Outboard E115DHXISF 2010 — 115
Johnson/Evinrude Outboard E115DCXISR 2010 — 115
Johnson/Evinrude Outboard E115DHLISC 2010 — 115
Johnson/Evinrude Outboard E115DPLISF 2010 — 115
Johnson/Evinrude Outboard E115DSLISF 2010 — 115
Johnson/Evinrude Outboard E115DHLISF 2010 — 115
Johnson/Evinrude Outboard E115DPLISM 2010 — 115
Johnson/Evinrude Outboard E115DSLISM 2010 — 115
Johnson/Evinrude Outboard E115HSLISC 2010 — 115
Johnson/Evinrude Outboard E115HSLISF 2010 — 115
Johnson/Evinrude Outboard E130DPXISC 2010 — 130
Johnson/Evinrude Outboard E130DPXISF 2010 — 130
Johnson/Evinrude Outboard E130DCXISC 2010 — 130
Johnson/Evinrude Outboard E130DCXISF 2010 — 130
Johnson/Evinrude Outboard E130DSLISC 2010 — 130
Johnson/Evinrude Outboard E130DSLISF 2010 — 130
Johnson/Evinrude Outboard E130DPLISC 2010 — 130
Johnson/Evinrude Outboard E130DPLISF 2010 — 130
Johnson/Evinrude Outboard E115DCXIIA 2011 — 115
Johnson/Evinrude Outboard E115DPXIIB 2011 — 115
Johnson/Evinrude Outboard E115DBXIIB 2011 — 115
Johnson/Evinrude Outboard E115DHXIIR 2011 — 115
Johnson/Evinrude Outboard E115DHLIIR 2011 — 115
Johnson/Evinrude Outboard E115DSLIIB 2011 — 115
Johnson/Evinrude Outboard E115HSLIIR 2011 — 115
Johnson/Evinrude Outboard E115DPLIIB 2011 — 115
Johnson/Evinrude Outboard E130DPXIIR 2011 — 130
Johnson/Evinrude Outboard E130DCXIIR 2011 — 130
Johnson/Evinrude Outboard E130DSLIIR 2011 — 130
Johnson/Evinrude Outboard E130DPLIIR 2011 — 130
Johnson/Evinrude Outboard E115DBXINE 2012 — 115
Johnson/Evinrude Outboard E115DPXINE 2012 — 115
Johnson/Evinrude Outboard E115DCXINM 2012 — 115
Johnson/Evinrude Outboard E115DHXINA 2012 — 115
Johnson/Evinrude Outboard E115DPLINE 2012 — 115
Johnson/Evinrude Outboard E115DHLINA 2012 — 115
Johnson/Evinrude Outboard E115DSLINE 2012 — 115
Johnson/Evinrude Outboard E115HSLINA 2012 — 115
Johnson/Evinrude Outboard E130DPXINA 2012 — 130
Johnson/Evinrude Outboard E130DCXINA 2012 — 130
Johnson/Evinrude Outboard E130DSLINA 2012 — 130
Johnson/Evinrude Outboard E130DPLINA 2012 — 130
Johnson/Evinrude Outboard E60HGLAFF 2013-UP — 60
Johnson/Evinrude Outboard E60HSLAFF 2013-UP — 60
Johnson/Evinrude Outboard E90HSXAFA 2013-UP — 90
Johnson/Evinrude Outboard E90HSXAFB 2013-UP — 90
Johnson/Evinrude Outboard E90HGXAFB 2013-UP — 90
Johnson/Evinrude Outboard E90DHLAFA 2013-UP — 90
Johnson/Evinrude Outboard E90DHLAFB 2013-UP — 90
Johnson/Evinrude Outboard E90HSLAFA 2013-UP — 90
Johnson/Evinrude Outboard E90HSLAFB 2013-UP — 90
Johnson/Evinrude Outboard E90HGLAFB 2013-UP — 90
Johnson/Evinrude Outboard E90HGLAFF 2013-up — 90
Johnson/Evinrude Outboard E90HGXAFF 2013-up — 90
Johnson/Evinrude Outboard E90HSLAFF 2013-up — 90
Johnson/Evinrude Outboard E90HSXAFF 2013-up — 90
Johnson/Evinrude Outboard E90HGLAFH 2013-up — 90
Johnson/Evinrude Outboard E90HGXAFH 2013-up — 90
Johnson/Evinrude Outboard E90HSLAFH 2013-up — 90
Johnson/Evinrude Outboard E90HSXAFH 2013-up — 90
Johnson/Evinrude Outboard E90HSLAFL 2013-UP — 90
Johnson/Evinrude Outboard E90HSLAFK 2013-UP — 90
Johnson/Evinrude Outboard E90HSLAFI 2013-UP — 90
Johnson/Evinrude Outboard E90HGXAFL 2013-UP — 90
Johnson/Evinrude Outboard E90HSXAFL 2013-UP — 90
Johnson/Evinrude Outboard E90HGLAFL 2013-UP — 90
Johnson/Evinrude Outboard E90GNLAFF 2013-UP — 90
Johnson/Evinrude Outboard E90HSXAFK 2013-UP — 90
Johnson/Evinrude Outboard E90HGXAFK 2013-UP — 90
Johnson/Evinrude Outboard E90HGLAFK 2013-UP — 90
Johnson/Evinrude Outboard E90DSLAFF 2013-UP — 90
Johnson/Evinrude Outboard E90DPGLAFF 2013-UP — 90
Johnson/Evinrude Outboard E90SNLAFF 2013-UP — 90
Johnson/Evinrude Outboard E90HGLAFI 2013-UP — 90
Johnson/Evinrude Outboard E90HGXAFI 2013-UP — 90
Johnson/Evinrude Outboard E90HSXAFI 2013-UP — 90
Johnson/Evinrude Outboard E115DHXAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DHXABA 2013-UP — 115
Johnson/Evinrude Outboard E115DHXAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DHXAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DBXAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DCXABA 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DPXABA 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DHXAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DBXABA 2013-UP — 115
Johnson/Evinrude Outboard E115DBXAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DBXAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DHLAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DHLABA 2013-UP — 115
Johnson/Evinrude Outboard E115DGXAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DHLAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DPLAAA 2013-UP — 115
Johnson/Evinrude Outboard E115DHLAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DHLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DSLABA 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAAA 2013-UP — 115
Johnson/Evinrude Outboard E115SNLAFA 2013-UP — 115
Johnson/Evinrude Outboard E115SNLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115GNLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115HSLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DGLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115DPLABA 2013-UP — 115
Johnson/Evinrude Outboard E115DPLAFA 2013-UP — 115
Johnson/Evinrude Outboard E115DPLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115HGLAFB 2013-UP — 115
Johnson/Evinrude Outboard E115HSLAAA 2013-UP — 115
Johnson/Evinrude Outboard E115HSLABA 2013-UP — 115
Johnson/Evinrude Outboard E115HSLAFA 2013-UP — 115
Johnson/Evinrude Outboard A115DSLAFG 2013-up — 115
Johnson/Evinrude Outboard A115GNLAFG 2013-up — 115
Johnson/Evinrude Outboard A115SNLAFG 2013-up — 115
Johnson/Evinrude Outboard E115DCXAFF 2013-up — 115
Johnson/Evinrude Outboard E115HGLAFF 2013-up — 115
Johnson/Evinrude Outboard E115HSLAFF 2013-up — 115
Johnson/Evinrude Outboard E115SNLAFF 2013-up — 115
Johnson/Evinrude Outboard E115SNLAFG 2013-up — 115
Johnson/Evinrude Outboard A115DCXAFG 2013-up — 115
Johnson/Evinrude Outboard A115DGXAFG 2013-up — 115
Johnson/Evinrude Outboard E115DGLAFF 2013-up — 115
Johnson/Evinrude Outboard E115DGXAFF 2013-up — 115
Johnson/Evinrude Outboard E115DSLAFF 2013-up — 115
Johnson/Evinrude Outboard E115GNLAFF 2013-up — 115
Johnson/Evinrude Outboard A115DGLAFG 2013-up — 115
Johnson/Evinrude Outboard A115DPXAFG 2013-up — 115
Johnson/Evinrude Outboard E115DCXAFG 2013-up — 115
Johnson/Evinrude Outboard E115DGLAFG 2013-up — 115
Johnson/Evinrude Outboard E115DSLAFG 2013-up — 115
Johnson/Evinrude Outboard E115GNLAFG 2013-up — 115
Johnson/Evinrude Outboard E115DGXAFG 2013-up — 115
Johnson/Evinrude Outboard E115DHXAFF 2013-up — 115
Johnson/Evinrude Outboard E115DPXAFF 2013-up — 115
Johnson/Evinrude Outboard E115DPXAFG 2013-up — 115
Johnson/Evinrude Outboard A115SHXAFH 2013-up — 115
Johnson/Evinrude Outboard E115GNLAFH 2013-up — 115
Johnson/Evinrude Outboard A115GHXAFH 2013-up — 115
Johnson/Evinrude Outboard E115DCXAFH 2013-up — 115
Johnson/Evinrude Outboard E115DGLAFH 2013-up — 115
Johnson/Evinrude Outboard E115DGXAFH 2013-up — 115
Johnson/Evinrude Outboard E115DPXAFH 2013-up — 115
Johnson/Evinrude Outboard E115SNLAFH 2013-up — 115
Johnson/Evinrude Outboard A115GHLAFK 2013-UP — 115
Johnson/Evinrude Outboard A115GHXAFI 2013-UP — 115
Johnson/Evinrude Outboard A115SHXAFI 2013-UP — 115
Johnson/Evinrude Outboard A115SHXAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DGXAFK 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAFI 2013-UP — 115
Johnson/Evinrude Outboard E115GNLAFL 2013-UP — 115
Johnson/Evinrude Outboard A115GHXAFK 2013-UP — 115
Johnson/Evinrude Outboard A115GHXAFL 2013-UP — 115
Johnson/Evinrude Outboard A115SHLAFK 2013-UP — 115
Johnson/Evinrude Outboard A115SHLAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAFK 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAFL 2013-UP — 115
Johnson/Evinrude Outboard E115GNLAFI 2013-UP — 115
Johnson/Evinrude Outboard E115SNLAFK 2013-UP — 115
Johnson/Evinrude Outboard A115GHLAFL 2013-UP — 115
Johnson/Evinrude Outboard A115SHXAFK 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAFI 2013-UP — 115
Johnson/Evinrude Outboard E115DGXAFI 2013-UP — 115
Johnson/Evinrude Outboard E115DGXAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAFK 2013-UP — 115
Johnson/Evinrude Outboard E115GNLAFK 2013-UP — 115
Johnson/Evinrude Outboard E115SNLAFI 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAFK 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DGLAFK 2013-UP — 115
Johnson/Evinrude Outboard E115DGLAFL 2013-UP — 115
Johnson/Evinrude Outboard E115SNLAFL 2013-UP — 115
Johnson/Evinrude Outboard E115DSLAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DPXAAB 2013-UP — 115
Johnson/Evinrude Outboard E115HSLAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DBXAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DCXAAB 2013-UP — 115
Johnson/Evinrude Outboard E115DPLAAB 2013-UP — 115
Johnson/Evinrude Outboard E130DPXAFB 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAAA 2013-UP — 130
Johnson/Evinrude Outboard E130DPXAAA 2013-UP — 130
Johnson/Evinrude Outboard E130DPXABA 2013-UP — 130
Johnson/Evinrude Outboard E130DPXAAB 2013-UP — 130
Johnson/Evinrude Outboard E130DPXAFA 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAAB 2013-UP — 130
Johnson/Evinrude Outboard E130DCXABA 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFA 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFB 2013-UP — 130
Johnson/Evinrude Outboard E130DPLABA 2013-UP — 130
Johnson/Evinrude Outboard E130DPLAFB 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAAA 2013-UP — 130
Johnson/Evinrude Outboard E130DSLABA 2013-UP — 130
Johnson/Evinrude Outboard E130DGLAFB 2013-UP — 130
Johnson/Evinrude Outboard E130DPLAAA 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAFB 2013-UP — 130
Johnson/Evinrude Outboard E130DPLAAB 2013-UP — 130
Johnson/Evinrude Outboard E130DPLAFA 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAAB 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAFA 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFF 2013-up — 130
Johnson/Evinrude Outboard E130DPXAFF 2013-up — 130
Johnson/Evinrude Outboard E130DGLAFF 2013-up — 130
Johnson/Evinrude Outboard E130DSLAFF 2013-up — 130
Johnson/Evinrude Outboard E130DCXAFH 2013-up — 130
Johnson/Evinrude Outboard E130DGLAFH 2013-up — 130
Johnson/Evinrude Outboard E130DPXAFH 2013-up — 130
Johnson/Evinrude Outboard E130DSLAFH 2013-up — 130
Johnson/Evinrude Outboard E130DPXAFL 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAFK 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAFL 2013-UP — 130
Johnson/Evinrude Outboard E130DGLAFK 2013-UP — 130
Johnson/Evinrude Outboard E130DPXAFI 2013-UP — 130
Johnson/Evinrude Outboard E130DGLAFL 2013-UP — 130
Johnson/Evinrude Outboard E130DPXAFK 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFI 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFK 2013-UP — 130
Johnson/Evinrude Outboard E130DCXAFL 2013-UP — 130
Johnson/Evinrude Outboard E130DSLAFI 2013-UP — 130
Johnson/Evinrude Outboard E130DGLAFI 2013-UP — 130

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Johnson/Evinrude Outboard Water Pump Repair Kit with Housing | 18-3476

Johnson/Evinrude Outboard: 5007556

*Can't find what you're looking for? Search the entire SIERRA catalog with our parts-finder tool

60 YEARS OF SIERRA

SIERRA has a 60-year history as a leading global manufacturer of aftermarket engine and drive parts for the marine industry. The SIERRA brand encompasses the full SIERRA Marine product lines, as well as expansive brands formerly known as Shields and Moeller.

Learn More
