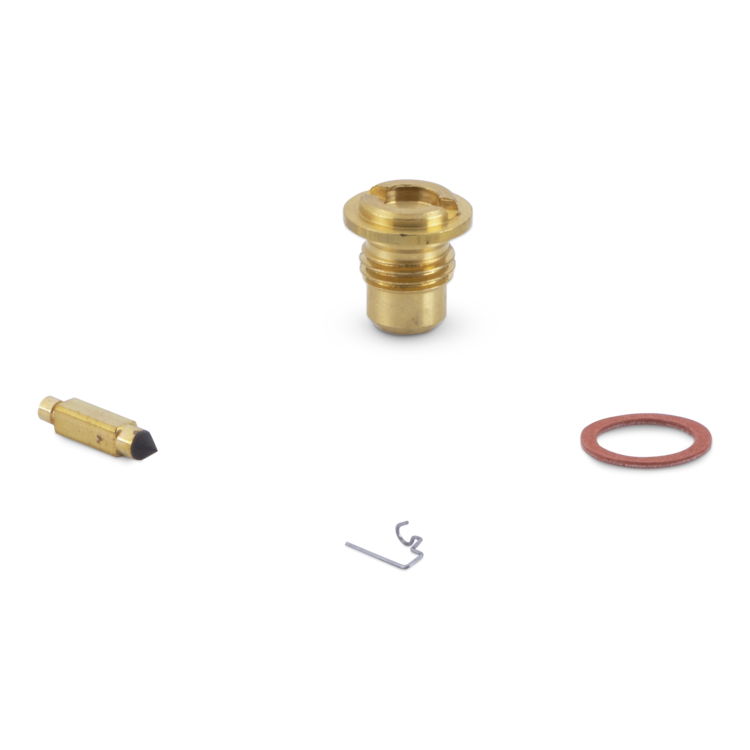

A small brass mechanical assembly kit on a white background, including a brass cylindrical component, a brass pin with a black tip, a red rubber O-ring, and a small silver metal clip.

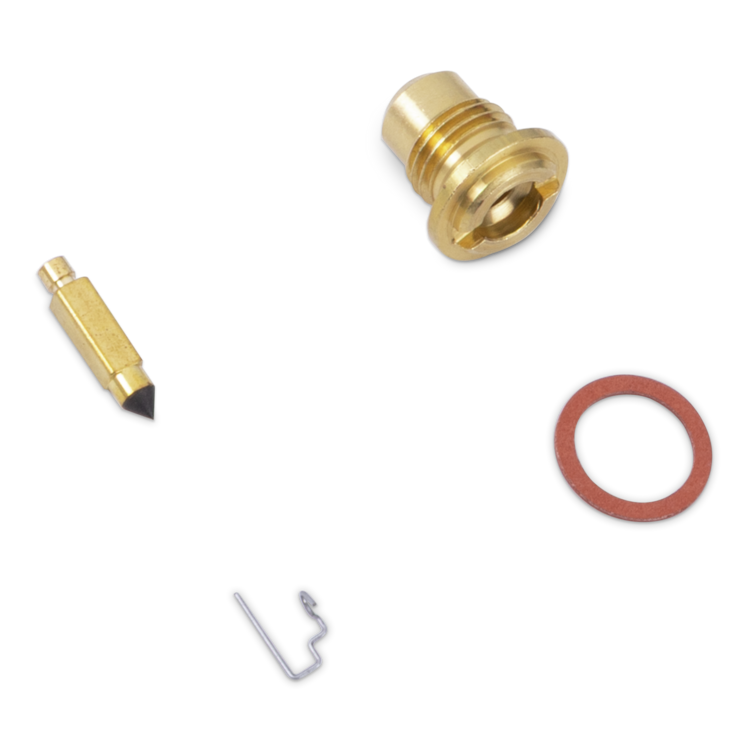

A small brass replacement kit with a threaded brass fitting, a brass needle tip with a black point, a reddish-brown rubber O-ring, and a small silver metal clip, arranged on a plain white background.
A small brass mechanical assembly kit on a white background, including a brass cylindrical component, a brass pin with a black tip, a red rubber O-ring, and a small silver metal clip.
A small brass replacement kit with a threaded brass fitting, a brass needle tip with a black point, a reddish-brown rubber O-ring, and a small silver metal clip, arranged on a plain white background.
SKU 18-7233

Mercury Needle & Seat Assembly | 18-7233

by SIERRA
Availability:
in stock, ready to be shipped
$25.89 - $25.89
$25.89
$25.89 - $25.89
$25.89

The Sierra 18-7233 needle & seat assembly for select Mercury engines directly replaces GLM 40900 and Mercury 1395-7824 assemblies. See OEM interchange and engine application for additional details.

OEM INTERCHANGE

GLM: 40900

Mercury Marine: 1395-7824
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Replaces GLM 40900 carburetor kit
  • Replaces Mercury 1395-7824 carburetor kit

Logistics

  • Dimensions parcel depth, ["]: 0.55007764
  • Dimensions parcel height, ["]: 3.95007084
  • Dimensions parcel width, ["]: 5.05006864
  • Parcel weight, [lbs]: 0.01323

Engine Fitment for 18-7233

Brand Engine Model Year Serial Number Range Horsepower
Mercury Marine V-175 1976 4301235-C100860 175
Mercury Marine V-175 1976 8058870-up 175
Mercury Marine V-175 1977 4301235-C100860 175
Mercury Marine V-175 1977 8058870-up 175
Mercury Marine V-1500 1978 4868998-A904645 150
Mercury Marine V-150 1978 4868998-A904645 150
Mercury Marine V-150-XR-2 1978 4868998-A904645 150
Mercury Marine V-150 WORK 1978 4868998-A904645 150
Mercury Marine V-150 1978 5600162-A904645 150
Mercury Marine V-150 MARATHON 1978 5600162-A904645 150
Mercury Marine V-150 MAGNUM 1978 5600162-A904645 150
Mercury Marine V-1500 1978 5600162-A904645 150
Mercury Marine V-175 1978 4301235-C100860 175
Mercury Marine V-175 1978 8058870-up 175
Mercury Marine V-150 1979 4868998-A904645 150
Mercury Marine V-1500 1979 5600162-A904645 150
Mercury Marine V-1500 1979 4868998-A904645 150
Mercury Marine V-150 WORK 1979 4868998-A904645 150
Mercury Marine V-150-XR-2 1979 4868998-A904645 150
Mercury Marine V-150 1979 5600162-A904645 150
Mercury Marine V-150 MAGNUM 1979 5600162-A904645 150
Mercury Marine V-150 MARATHON 1979 5600162-A904645 150
Mercury Marine V-175 1979 4301235-C100860 175
Mercury Marine V-175 1979 8058870-up 175
Mercury Marine V-200 1979 5624878-C100860 200
Mercury Marine V-150 1980 4868998-A904645 150
Mercury Marine V-150-XR-2 1980 4868998-A904645 150
Mercury Marine V-150 MAGNUM 1980 5600162-A904645 150
Mercury Marine V-150 WORK 1980 4868998-A904645 150
Mercury Marine V-150 1980 5600162-A904645 150
Mercury Marine V-150 MARATHON 1980 5600162-A904645 150
Mercury Marine V-1500 1980 4868998-A904645 150
Mercury Marine V-1500 1980 5600162-A904645 150
Mercury Marine V-175 1980 4301235-C100860 175
Mercury Marine V-175 1980 8058870-up 175
Mercury Marine V-200 1980 5624878-C100860 200
Mercury Marine V-150 WORK 1981 4868998-0A904645 150
Mercury Marine V-150 1981 4868998-0A904645 150
Mercury Marine V-175 1981 4301235-0C100860 175
Mercury Marine V-200 1981 5624878-C100860 200
Mercury Marine V-1500 1982 4868998-A904645 150
Mercury Marine V-1500 1982 5600162-A904645 150
Mercury Marine V-150 1982 4868998-A904645 150
Mercury Marine V-150 WORK 1982 4868998-A904645 150
Mercury Marine V-150 1982 5600162-A904645 150
Mercury Marine V-150 MAGNUM 1982 5600162-A904645 150
Mercury Marine V-150 MARATHON 1982 5600162-A904645 150
Mercury Marine V-200 1982 5624878-C100860 200
Mercury Marine V-150 WORK 1983 4868998-A904645 150
Mercury Marine V-150 1983 5600162-A904645 150
Mercury Marine V-150 MARATHON 1983 5600162-A904645 150
Mercury Marine V-150 1983 4868998-A904645 150
Mercury Marine V-150 MAGNUM 1983 5600162-A904645 150
Mercury Marine V-1500 1983 4868998-A904645 150
Mercury Marine V-1500 1983 5600162-A904645 150
Mercury Marine V-200 1983 5624878-C100860 200
Mercury Marine V-1500 1984 5600162-A904645 150
Mercury Marine V-1500 1984 4868998-A904645 150
Mercury Marine V-150 1984 4868998-A904645 150
Mercury Marine V-150 WORK 1984 4868998-A904645 150
Mercury Marine V-150 1984 5600162-A904645 150
Mercury Marine V-150 MAGNUM 1984 5600162-A904645 150
Mercury Marine V-150 MARATHON 1984 5600162-A904645 150
Mercury Marine V-150-XR-2 1984 4868998-A904645 150
Mercury Marine V-200 1984 5624878-C100860 200
Mercury Marine V-150 1985 4868998-A904645 150
Mercury Marine V-150 MAGNUM 1985 5600162-A904645 150
Mercury Marine V-1500 1985 5600162-A904645 150
Mercury Marine V-150-XR-2 1985 4868998-A904645 150
Mercury Marine V-150 WORK 1985 4868998-A904645 150
Mercury Marine V-1500 1985 4868998-A904645 150
Mercury Marine V-150 1985 5600162-A904645 150
Mercury Marine V-150 MARATHON 1985 5600162-A904645 150
Mercury Marine V-175 1985 4301235-C100860 175
Mercury Marine V-175 1985 8058870-up 175
Mercury Marine V-200 1985 5624878-C100860 200
Mercury Marine V-135 1986 0A904646-0C100860 135
Mercury Marine V-150 1986 0A904646-0C100860 150
Mercury Marine V-150-XR-2 1986 4868998-A904645 150
Mercury Marine V-175 1986 4301235-C100860 175
Mercury Marine V-175 1986 8058870-up 175
Mercury Marine V-200 1986 5624878-C100860 200
Mercury Marine V-135 1987 0A904646-0C100860 135
Mercury Marine V-150 1987 0A904646-0C100860 150
Mercury Marine V-150-XR-2 1987 4868998-A904645 150
Mercury Marine V-175 1987 4301235-0C100860 175
Mercury Marine V-200 1987 5624878-C100860 200
Mercury Marine V-135 1988 0A904646-0C100860 135
Mercury Marine V-150 1988 0A904646-0C100860 150
Mercury Marine XR-4 1988 0B242885-0C100860 150
Mercury Marine MAGNUM II 1988 0B242885-0C100860 150
Mercury Marine V-175 1988 4301235-C100860 175
Mercury Marine V-175 1988 8058870-up 175
Mercury Marine V-200 1988 5624878-C100860 200
Mercury Marine MERC MOD-VP 1988 0B290000-up 220
Mercury Marine MERC XR2 1988 0B290314-0C276429 —
Mercury Marine V-135 1989 0C100861-0C239552 135
Mercury Marine V-150 1989 0C100861-0C239552 150
Mercury Marine V-175 1989 0C100861-0C239552 175
Mercury Marine V-200 1989 0C100861-0C291519 200
Mercury Marine MERC MOD-VP 1989 0B290000-up 220
Mercury Marine MERC/MAR 2.4L (CARB) 1989 0C175045-up —
Mercury Marine XR-4 1989 0C100861-0C239552 —
Mercury Marine MAGNUM II 1989 0C100861-0C239552 —
Mercury Marine V-175 1990 0C100861-0C239552 175
Mercury Marine V-200 1990 0C100861-0C291519 200
Mercury Marine MERC/MAR 2.4L (CARB) 1990 0C175045-up —
Mercury Marine XR-4 1990 0C100861-0C239552 —
Mercury Marine MAGNUM II 1990 0C100861-0C239552 —
Mercury Marine SST 120 1991 0D030200-up —
Mercury Marine S2000 1991 0D030200-up —
Mercury Marine S2000 1992 0D030200-up —
Mercury Marine SST 120 1992 0D030200-up —
Mercury Marine S2000 1993 0D030200-up —
Mercury Marine SST 120 1993 0D030200-up —
Mercury Marine S2000 1994 0D030200-up —
Mercury Marine SST 120 1994 0D030200-up —
Mercury Marine SST 120 1995 0D030200-up —
Mercury Marine S2000 1995 0D030200-up —
Mercury Marine SST 120 1996 0D030200-up —
Mercury Marine S2000 1996 0D030200-up —
Mercury Marine SST 120 1997 0D030200-up —
Mercury Marine S2000 1997 0D030200-up —
Mercury Marine S2000 1998 0D030200-up —
Mercury Marine SST 120 1998 0D030200-up —
Mercury Marine S2000 1999 0D030200-up —
Mercury Marine SST 120 1999 0D030200-up —
Mercury Marine S2000 2000 0D030200-up —
Mercury Marine SST 120 2000 0D030200-up —
Mercury Marine S2000 2001 0D030200-up —
Mercury Marine SST 120 2001 0D030200-up —
Mercury Marine S2000 2002 0D030200-up —
Mercury Marine SST 120 2002 0D030200-up —
Mercury Marine V-225 5628028-up 225

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Mercury Needle & Seat Assembly | 18-7233

GLM: 40900

Mercury Marine: 1395-7824
