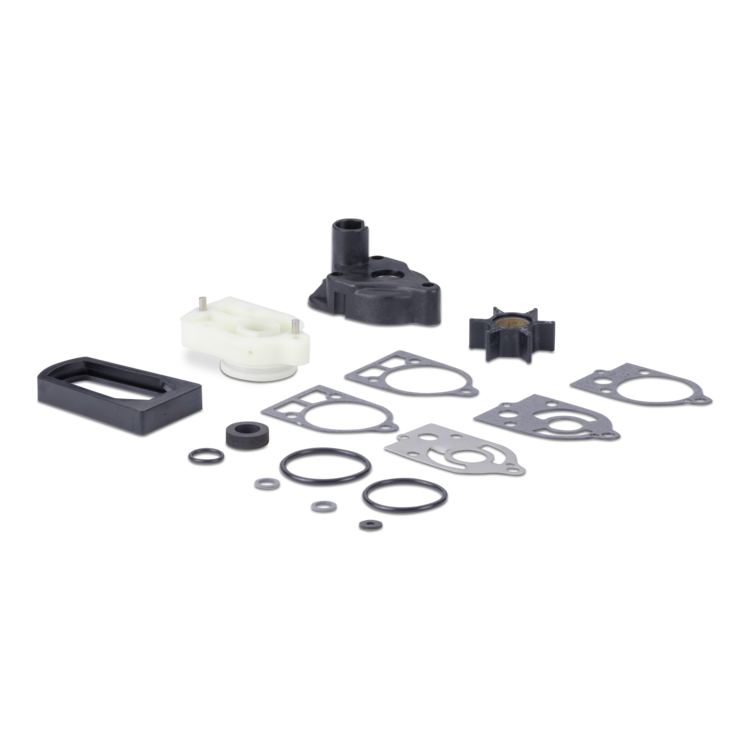

A water pump gasket kit containing a black plastic water pump, a white plastic impeller, several black rubber O-rings, metal gaskets, and a black rectangular frame, arranged on a plain white background.

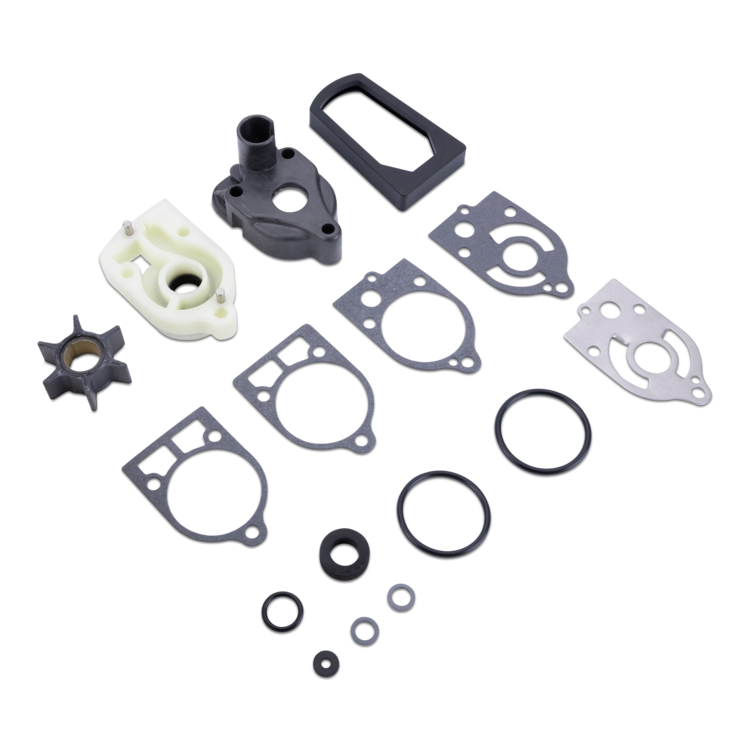

A complete water pump kit with various black rubber O-rings, flat gaskets, a white plastic component, and a black impeller, arranged neatly on a solid white background.
A water pump gasket kit containing a black plastic water pump, a white plastic impeller, several black rubber O-rings, metal gaskets, and a black rectangular frame, arranged on a plain white background.
A complete water pump kit with various black rubber O-rings, flat gaskets, a white plastic component, and a black impeller, arranged neatly on a solid white background.
SKU 18-3323

Mercury Water Pump Repair Kit | 18-3323

by SIERRA
Availability:
in stock, ready to be shipped
$120.19 - $120.19
$120.19
$120.19 - $120.19
$120.19

The Sierra 18-3323 water pump repair kit for select Mercury engines includes impeller, O-rings, housing, gaskets, plates, & hardware - everything you need to stay on the water longer. See OEM interchange and engine fitment for additional information.

Kit includes

  • Drain Screw Gasket | 18-2945-9
  • Gasket, Water Pump Base | 18-2841-9
  • Gasket, Water Pump Base | 18-2825
  • Gasket, Water Pump | 18-2824-9
  • Lower Water Pump Gasket | 18-2823-9
  • Impeller | 18-3007
  • Rubber Washer | 18-2948-9
  • O-Ring | 18-7174-9
  • O-Ring | 18-7115
  • O-Ring | 18-7155
  • Water Pump Housing | 18-3118
  • Water Pump Base | 18-3423
  • Exhaust Leg Rubber Seal | 18-0539
  • Impeller Plate | 18-3107
OEM INTERCHANGE

GLM: 12180

Mallory: 9-48302

Mercury Marine: 46-73640A2
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Kit includes:
  • O-Ring | 18-7115
  • Drain Screw Gasket | 18-2945-9
  • Gasket, Water Pump Base | 18-2841-9
  • Gasket, Water Pump Base | 18-2825
  • Gasket, Water Pump | 18-2824-9
  • Lower Water Pump Gasket | 18-2823-9
  • Impeller | 18-3007
  • Rubber Washer | 18-2948-9
  • O-Ring | 18-7174-9

Logistics

  • Dimensions parcel depth, ["]: 4.50006974
  • Dimensions parcel height, ["]: 2.90007294
  • Dimensions parcel width, ["]: 5.10006854
  • Parcel weight, [lbs]: 0.659295

Engine Fitment for 18-3323

Brand Engine Model Year Serial Number Range Horsepower
Mercury Marine 500, 50 1976 7068998-7143687 50
Mercury Marine 500, 50 1976 4357640-5531629 50
Mercury Marine 500, 50 1976 8030090-8063984 50
Mercury Marine 500, 50 1976 9107214-9248005 50
Mercury Marine 500, 50 1977 7068998-7143687 50
Mercury Marine 500, 50 1977 4357640-5531629 50
Mercury Marine 500, 50 1977 8030090-8063984 50
Mercury Marine 500, 50 1977 9107214-9248005 50
Mercury Marine 70 (3 Cyl) 1977 4571652-5579016 70
Mercury Marine 70 1977 8042350-8065064 70
Mercury Marine 70 1977 7087823-7145937 70
Mercury Marine 70 1977 9135825-9255130 70
Mercury Marine 500, 50 1978 7068998-7143687 50
Mercury Marine 500, 50 1978 4357640-5531629 50
Mercury Marine 500, 50 1978 8030090-8063984 50
Mercury Marine 500, 50 1978 9107214-9248005 50
Mercury Marine 70 (3 Cyl) 1978 4571652-5579016 70
Mercury Marine 70 1978 7087823-7145937 70
Mercury Marine 70 1978 8042350-8065064 70
Mercury Marine 70 1978 9135825-9255130 70
Mercury Marine 500, 50 1979 7068998-7143687 50
Mercury Marine 500, 50 1979 4357640-5531629 50
Mercury Marine 500, 50 1979 8030090-8063984 50
Mercury Marine 500, 50 1979 9107214-9248005 50
Mercury Marine 70 (3 Cyl) 1979 4571652-5579016 70
Mercury Marine 70 1979 7087823-7145937 70
Mercury Marine 70 1979 8042350-8065064 70
Mercury Marine 70 1979 9135825-9255130 70

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Mercury Water Pump Repair Kit | 18-3323

GLM: 12180

Mallory: 9-48302

Mercury Marine: 46-73640A2

*Can't find what you're looking for? Search the entire SIERRA catalog with our parts-finder tool
