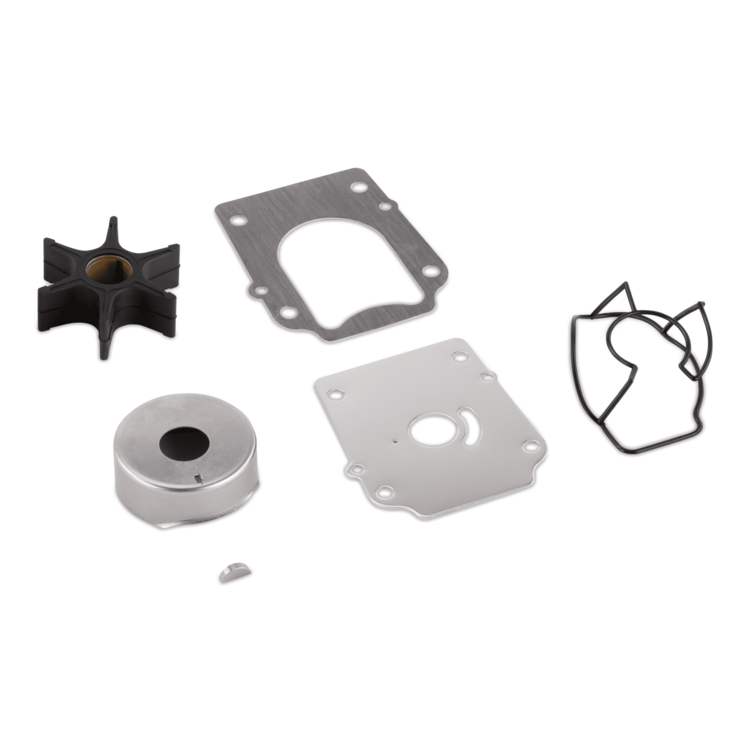

Set of mechanical parts including a black impeller, metal gaskets, and a small metal clip on a white background.
An water pump kit containing a black impeller, a silver metal pump housing, a silver metal cover plate, a large silver gasket, black rubber gaskets, and a small metal clip, all arranged on a plain white background.
Set of mechanical parts including a black impeller, metal gaskets, and a small metal clip on a white background.
SKU 18-4544

Suzuki Outboard Water Pump Repair Kit | 18-4544

by SIERRA
Availability:
in stock, ready to be shipped
$68.39 - $68.39
$68.39
$68.39 - $68.39
$68.39

The Sierra 18-4544 water pump repair kit for Suzuki DF70A-DF90A 4-Stroke Outboards 2009-Current includes impeller, impeller key, water pump housing seal, gasket, and insert cup - everything you need to stay on the water longer.

Kit Includes

  • Impeller Key
  • Water Pump Housing Seal
  • Insert Cup
  • Wear Plate Gasket
  • Wear Plate
  • Impeller | 18-3049
OEM INTERCHANGE

Suzuki Outboard

  • 17400-87L00
  • 17400-87L01
  • 17400-87L02
  • 17400-87L03
  • 17400-87L04
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Components are engineered to meet or exceed OEM specifications
  • Impeller | 18-3049
  • Designed to optimize the cooling system by operating at maximum efficiency
  • Application: Suzuki DF70A-DF90A 4-Stroke Outboards 2009-Current
  • Kit includes:
  • Impeller key
  • Water pump housing seal
  • Insert cup
  • Wear plate gasket
  • Wear plate

Logistics

  • Dimensions parcel depth, ["]: 3.6
  • Dimensions parcel height, ["]: 4.8
  • Dimensions parcel width, ["]: 7
  • Parcel weight, [lbs]: 1.19952

Engine Fitment for 18-4544

Brand Engine Model Year Serial Number Range Horsepower
Suzuki Outboard DF70ATLK9 2009 07002F-980001-07002F-989999 70
Suzuki Outboard DF80ATLK9 2009 08001F-980001-08001F-989999 80
Suzuki Outboard DF90ATLK9 2009 09002F-980001-09002F-989999 90
Suzuki Outboard DF90ATXK9 2009 09002F-980001-09002F-989999 90
Suzuki Outboard DF70ATLK10 2010 07003F-010001-07003F-019999 70
Suzuki Outboard DF80ATLK10 2010 08002F-010001-08002F-019999 80
Suzuki Outboard DF90ATLK10 2010 09003F-010001-09003F-019999 90
Suzuki Outboard DF90ATXK10 2010 09003F-010001-09003F-019999 90
Suzuki Outboard DF70ATL 2011 07003F-110001-07003F-119999 70
Suzuki Outboard DF80ATL 2011 08002F-110001-08002F-119999 80
Suzuki Outboard DF90ATL 2011 09003F-110001-09003F-119999 90
Suzuki Outboard DF90ATX 2011 09003F-110001-09003F-119999 90
Suzuki Outboard DF70ATL 2012 07003F-210001-07003F-219999 70
Suzuki Outboard DF90ATL 2012 09003F-210001-09003F-219999 90
Suzuki Outboard DF90ATX 2012 09003F-210001-09003F-219999 90
Suzuki Outboard DF70ATL 2013 07003F-310001-07003F-319999 70
Suzuki Outboard DF90ATL 2013 09003F-310001-09003F-319999 90
Suzuki Outboard DF90ATX 2013 09003F-310001-09003F-319999 90
Suzuki Outboard DF70ATL 2014 07003F-410001-07003F-419999 70
Suzuki Outboard DF90ATX 2014 09003F-410001-09003F-419999 90
Suzuki Outboard DF90ATL 2014 09003F-410001-09003F-419999 90
Suzuki Outboard DF70ATL 2015 07003F-510001-07003F-519999 70
Suzuki Outboard DF90ATX 2015 09003F-510001-09003F-519999 90
Suzuki Outboard DF90ATL 2015 09003F-510001-09003F-519999 90
Suzuki Outboard DF70ATL 2016 07003F-610001-07003F-619999 70
Suzuki Outboard DF90ATL 2016 09003F-610001-09003F-619999 90
Suzuki Outboard DF90ATLW 2016 09003F-610001-09003F-619999 90
Suzuki Outboard DF90ATX 2016 09003F-610001-09003F-619999 90
Suzuki Outboard DF90ATXW 2016 09003F-610001-09003F-619999 90
Suzuki Outboard DF70ATL2 2017 07003F-710001-07003F-719999 70
Suzuki Outboard DF70ATLW2 2017 07003F-710001-07003F-719999 70
Suzuki Outboard DF90ATL2 2017 09003F-710001-09003F-719999 90
Suzuki Outboard DF90ATX2 2017 09003F-710001-09003F-719999 90
Suzuki Outboard DF90ATLW2 2017 09003F-710001-09003F-719999 90
Suzuki Outboard DF90ATXW2 2017 09003F-710001-09003F-719999 90
Suzuki Outboard DF70ATLW2 2018 07003F-810001-07003F-819999 70
Suzuki Outboard DF70ATL2 2018 07003F-810001-07003F-819999 70
Suzuki Outboard DF90ATL2 2018 09003F-810001-09003F-819999 90
Suzuki Outboard DF90ATLW2 2018 09003F-810001-09003F-819999 90
Suzuki Outboard DF90ATX2 2018 09003F-810001-09003F-819999 90
Suzuki Outboard DF90ATXW2 2018 09003F-810001-09003F-819999 90
Suzuki Outboard DF70ATL2 2019 07003F-910001-07003F-919999 70
Suzuki Outboard DF70ATLW2 2019 07003F-910001-07003F-919999 70
Suzuki Outboard DF90ATLW2 2019 09003F-910001-09003F-919999 90
Suzuki Outboard DF90ATX2 2019 09003F-910001-09003F-919999 90
Suzuki Outboard DF90ATXW2 2019 09003F-910001-09003F-919999 90
Suzuki Outboard DF90ATL2 2019 09003F-910001-09003F-919999 90
Suzuki Outboard DF70ATL2 2020 07003F-040001-07003F-049999 70
Suzuki Outboard DF70ATLW2 2020 07003F-040001-07003F-049999 70
Suzuki Outboard DF90ATL2 2020 09003F-040001-09003F-049999 90
Suzuki Outboard DF90ATLW2 2020 09003F-040001-09003F-049999 90
Suzuki Outboard DF90ATX2 2020 09003F-040001-09003F-049999 90
Suzuki Outboard DF90ATXW2 2020 09003F-040001-09003F-049999 90
Suzuki Outboard DF70ATL3 2021 07003F-140001-07003F-149999 70
Suzuki Outboard DF70ATLW3 2021 07003F-140001-07003F-149999 70
Suzuki Outboard DF90ATL3 2021 09003F-140001-09003F-149999 90
Suzuki Outboard DF90ATX3 2021 09003F-140001-09003F-149999 90
Suzuki Outboard DF90ATLW3 2021 09003F-140001-09003F-149999 90
Suzuki Outboard DF90ATXW3 2021 09003F-140001-09003F-149999 90
Suzuki Outboard DF70ATL4 2022 07003F-240001-07003F-249999 70
Suzuki Outboard DF70ATLW4 2022 07003F-240001-07003F-249999 70
Suzuki Outboard DF90ATXW4 2022 09003F-240001-09003F-249999 90
Suzuki Outboard DF90ATL4 2022 09003F-240001-09003F-249999 90
Suzuki Outboard DF90ATX4 2022 09003F-240001-09003F-249999 90
Suzuki Outboard DF90ATLW4 2022 09003F-240001-09003F-249999 90
Suzuki Outboard DF75ATLW5 2023 07501F-340001-07501F-349999 75
Suzuki Outboard DF75ATL5 2023 07501F-340001-07501F-349999 75
Suzuki Outboard DF90ATLW5 2023 09003F-340001-09003F-349999 90
Suzuki Outboard DF90ATX5 2023 09003F-340001-09003F-349999 90
Suzuki Outboard DF90ATXW5 2023 09003F-340001-09003F-349999 90
Suzuki Outboard DF90ATL5 2023 09003F-340001-09003F-349999 90
Suzuki Outboard DF75ATL5 2024 07501F-440001-07501F-449999 75
Suzuki Outboard DF75ATLW5 2024 07501F-440001-07501F-449999 75
Suzuki Outboard DF90ATL5 2024 09003F-440001-09003F-449999 90
Suzuki Outboard DF90ATX5 2024 09003F-440001-09003F-449999 90
Suzuki Outboard DF90ATLW5 2024 09003F-440001-09003F-449999 90
Suzuki Outboard DF90ATXW5 2024 09003F-440001-09003F-449999 90
Suzuki Outboard DF75ATL5 2025 07501F-540001-07501F-549999 75
Suzuki Outboard DF75ATLW5 2025 07501F-540001-07501F-549999 75
Suzuki Outboard DF90ATL5 2025 09003F-540001-09003F-549999 90
Suzuki Outboard DF90ATLW5 2025 09003F-540001-09003F-549999 90
Suzuki Outboard DF90ATXW5 2025 09003F-540001-09003F-549999 90
Suzuki Outboard DF90ATX5 2025 09003F-540001-09003F-549999 90
