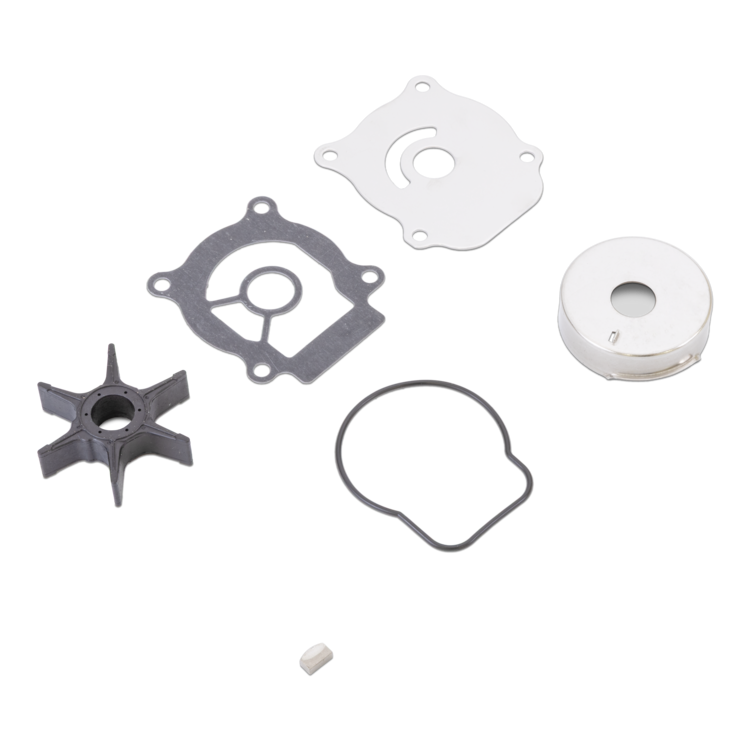

A set of small mechanical parts and gaskets laid out on a plain white background, including an impeller-like piece, a black gasket, a white round component, a thin black ring, and a small white cap.

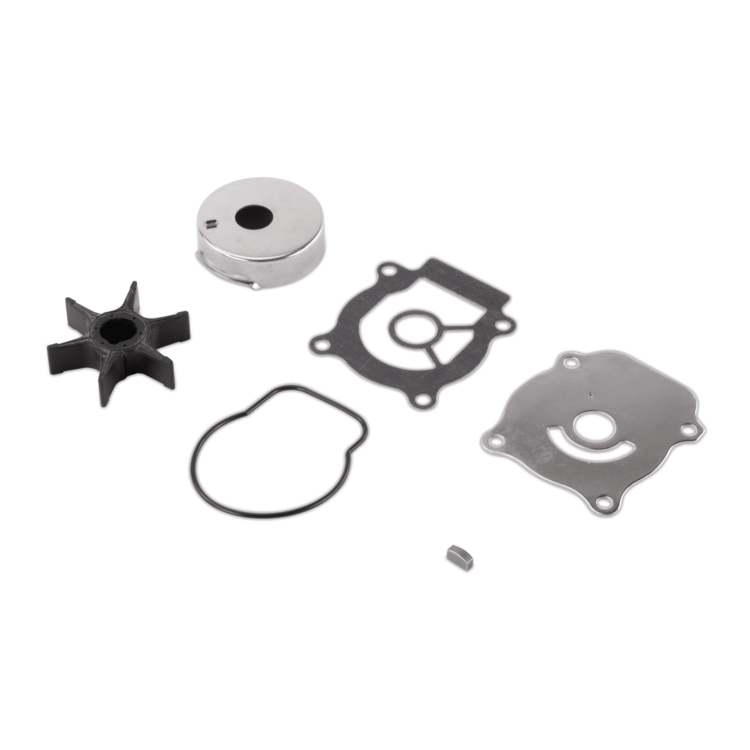

A set of mechanical engine parts including a black impeller, a silver metal pulley, black and silver gaskets, a black rubber gasket, and a small metal bolt, arranged on a plain white background.

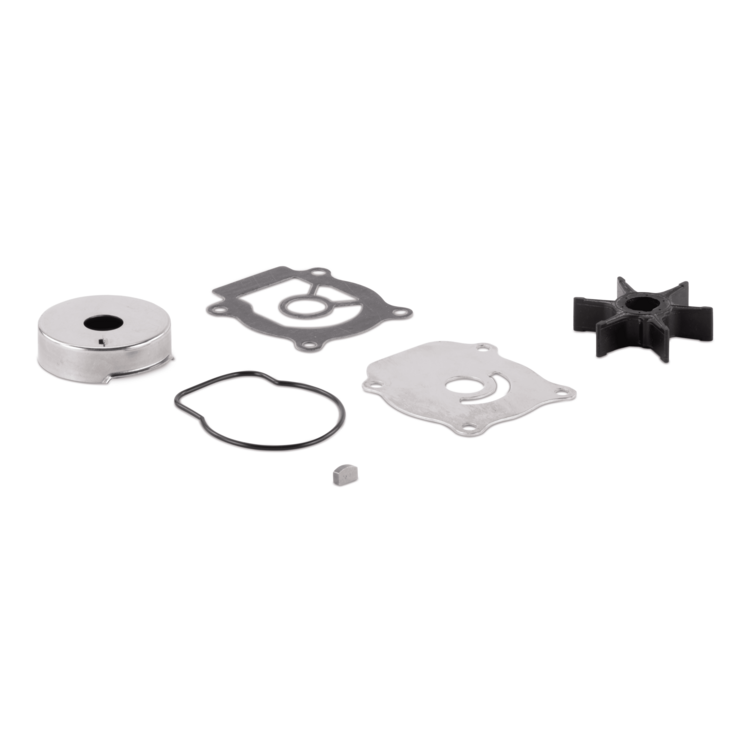

Set of mechanical parts, including black and silver gaskets and a black impeller, on a white background.
A set of small mechanical parts and gaskets laid out on a plain white background, including an impeller-like piece, a black gasket, a white round component, a thin black ring, and a small white cap.
A set of mechanical engine parts including a black impeller, a silver metal pulley, black and silver gaskets, a black rubber gasket, and a small metal bolt, arranged on a plain white background.
Set of mechanical parts, including black and silver gaskets and a black impeller, on a white background.
SKU 18-4552

Suzuki Outboard Water Pump Repair Kit | 18-4552

by SIERRA
Availability:
in stock, ready to be shipped
$51.79 - $51.79
$51.79
$51.79 - $51.79
$51.79

The Sierra 18-4552 water pump repair kit for Suzuki DF40A-DF60A 4-Stroke Outboard engines 2010-current includes impeller, insert cup, gasket, housing seal and woodruff key - everything you need to stay on the water longer. See OEM interchange and engine fitment for additional details.

Kit Includes

  • Woodruff Key
  • Insert Cup
  • Wear Plate
  • Wear Plate Gasket
  • Water Pump Housing Seal
  • Impeller | 18-3096
OEM INTERCHANGE

Suzuki Outboard

  • 17400-88L00
  • 17400-88L01
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Designed to optimize the cooling system by operating at maximum efficiency
  • Application: Suzuki DF40A-DF60A 4-Stroke Outboards 2010-Current
  • Kit includes:
  • Woodruff key
  • Insert cup
  • Wear plate
  • Wear plate gasket
  • Water Pump Housing Seal
  • Impeller | 18-3096

Logistics

  • Dimensions parcel depth, ["]: 3.8
  • Dimensions parcel height, ["]: 4.8
  • Dimensions parcel width, ["]: 6.9
  • Parcel weight, [lbs]: 0.42

Engine Fitment for 18-4552

Brand Engine Model Year Serial Number Range Horsepower
Suzuki Outboard DF60ATLK10 2010 06002F-010001-06002F-019999 60
Suzuki Outboard DF60ATXK10 2010 06002F-010001-06002F-019999 60
Suzuki Outboard DF40ATL 2011 04003F-110001-04003F-119999 40
Suzuki Outboard DF50ATL 2011 05003F-110001-05003F-119999 50
Suzuki Outboard DF60ATL 2011 06002F-110001-06002F-119999 60
Suzuki Outboard DF40ATL 2012 04003F-210001-04003F-219999 40
Suzuki Outboard DF50ATL 2012 05003F-210001-05003F-219999 50
Suzuki Outboard DF60ATL 2012 06002F-210001-06002F-219999 60
Suzuki Outboard DF40ATL 2013 04003F-310001-04003F-319999 40
Suzuki Outboard DF50ATL 2013 05003F-310001-05003F-319999 50
Suzuki Outboard DF60ATL 2013 06002F-310001-06002F-319999 60
Suzuki Outboard DF40ATL 2014 04003F-410001-04003F-419999 40
Suzuki Outboard DF50ATL 2014 05003F-410001-05003F-419999 50
Suzuki Outboard DF60ATL 2014 06002F-410001-06002F-419999 60
Suzuki Outboard DF40ATL 2015 04003F-510001-04003F-519999 40
Suzuki Outboard DF50ATL 2015 05003F-510001-05003F-519999 50
Suzuki Outboard DF60ATL 2015 06002F-510001-06002F-519999 60
Suzuki Outboard DF40ATL 2016 04003F-610001-04003F-619999 40
Suzuki Outboard DF50ATL 2016 05003F-610001-05003F-619999 50
Suzuki Outboard DF60ATL 2016 06002F-610001-06002F-619999 60
Suzuki Outboard DF40ATL2 2017 04003F-710001-04003F-719999 40
Suzuki Outboard DF40ATLW2 2017 04003F-710001-04003F-719999 40
Suzuki Outboard DF50ATL2 2017 05003F-710001-05003F-719999 50
Suzuki Outboard DF50ATLW2 2017 05003F-710001-05003F-719999 50
Suzuki Outboard DF60ATL2 2017 710001-719999 60
Suzuki Outboard DF60ATLW2 2017 710001-719999 60
Suzuki Outboard DF40ATL2 2018 04003F-810001-04003F-819999 40
Suzuki Outboard DF40ATLW2 2018 04003F-810001-04003F-819999 40
Suzuki Outboard DF50ATL2 2018 05003F-810001-05003F-819999 50
Suzuki Outboard DF50ATLW2 2018 05003F-810001-05003F-819999 50
Suzuki Outboard DF60ATLW2 2018 06002F-810001-06002F-819999 60
Suzuki Outboard DF60ATL2 2018 06002F-810001-06002F-819999 60
Suzuki Outboard DF40ATL2 2019 04003F-910001-04003F-919999 40
Suzuki Outboard DF40ATLW2 2019 04003F-910001-04003F-919999 40
Suzuki Outboard DF50ATL2 2019 05003F-910001-05003F-919999 50
Suzuki Outboard DF50ATLW2 2019 05003F-910001-05003F-919999 50
Suzuki Outboard DF60ATLW2 2019 06002F-910001-06002F-919999 60
Suzuki Outboard DF60ATL2 2019 06002F-910001-06002F-919999 60
Suzuki Outboard DF40ATLW2 2020 04003F-040001-04003F-049999 40
Suzuki Outboard DF40ATL2 2020 04003F-040001-04003F-049999 40
Suzuki Outboard DF50ATLW2 2020 05003F-040001-05003F-049999 50
Suzuki Outboard DF50ATL2 2020 05003F-040001-05003F-049999 50
Suzuki Outboard DF60ATL2 2020 06002F-040001-06002F-049999 60
Suzuki Outboard DF60ATLW2 2020 06002F-040001-06002F-049999 60
Suzuki Outboard DF40ATL3 2021 04003F-140001-04003F-149999 40
Suzuki Outboard DF40ATLW3 2021 04003F-140001-04003F-149999 40
Suzuki Outboard DF50ATL3 2021 05003F-140001-05003F-149999 50
Suzuki Outboard DF50ATLW3 2021 05003F-140001-05003F-149999 50
Suzuki Outboard DF60ATL3 2021 06002F-140001-06002F-149999 60
Suzuki Outboard DF60ATLW3 2021 06002F-140001-06002F-149999 60
Suzuki Outboard DF40ATLW4 2022 04003F-240001-04003F-249999 40
Suzuki Outboard DF40ATL4 2022 04003F-240001-04003F-249999 40
Suzuki Outboard DF50ATL4 2022 05003F-240001-05003F-249999 50
Suzuki Outboard DF50ATLW4 2022 05003F-240001-05003F-249999 50
Suzuki Outboard DF60ATL4 2022 06002F-240001-06002F-249999 60
Suzuki Outboard DF60ATLW4 2022 06002F-240001-06002F-249999 60
Suzuki Outboard DF40ATL5 2023 04003F-340001-04003F-349999 40
Suzuki Outboard DF40ATLW5 2023 04003F-340001-04003F-349999 40
Suzuki Outboard DF50ATL5 2023 05003F-340001-05003F-349999 50
Suzuki Outboard DF50ATLW5 2023 05003F-340001-05003F-349999 50
Suzuki Outboard DF60ATL5 2023 06002F-340001-06002F-349999 60
Suzuki Outboard DF60ATLW5 2023 06002F-340001-06002F-349999 60
Suzuki Outboard DF40ATL5 2024 04003F-440001-04003F-449999 40
Suzuki Outboard DF40ATLW5 2024 04003F-440001-04003F-449999 40
Suzuki Outboard DF50ATLW5 2024 05003F-440001-05003F-449999 50
Suzuki Outboard DF50ATL5 2024 05003F-440001-05003F-449999 50
Suzuki Outboard DF60ATL5 2024 06002F-440001-06002F-449999 60
Suzuki Outboard DF60ATLW5 2024 06002F-440001-06002F-449999 60
Suzuki Outboard DF40ATLW5 2025 04003F-540001-04003F-549999 40
Suzuki Outboard DF40ATL5 2025 04003F-540001-04003F-549999 40
Suzuki Outboard DF50ATL5 2025 05003F-540001-05003F-549999 50
Suzuki Outboard DF50ATLW5 2025 05003F-540001-05003F-549999 50
Suzuki Outboard DF60ATLW5 2025 06002F-540001-06002F-549999 60
Suzuki Outboard DF60ATL5 2025 06002F-540001-06002F-549999 60

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Suzuki Outboard Water Pump Repair Kit | 18-4552

Suzuki Outboard

  • 17400-88L00
  • 17400-88L01
