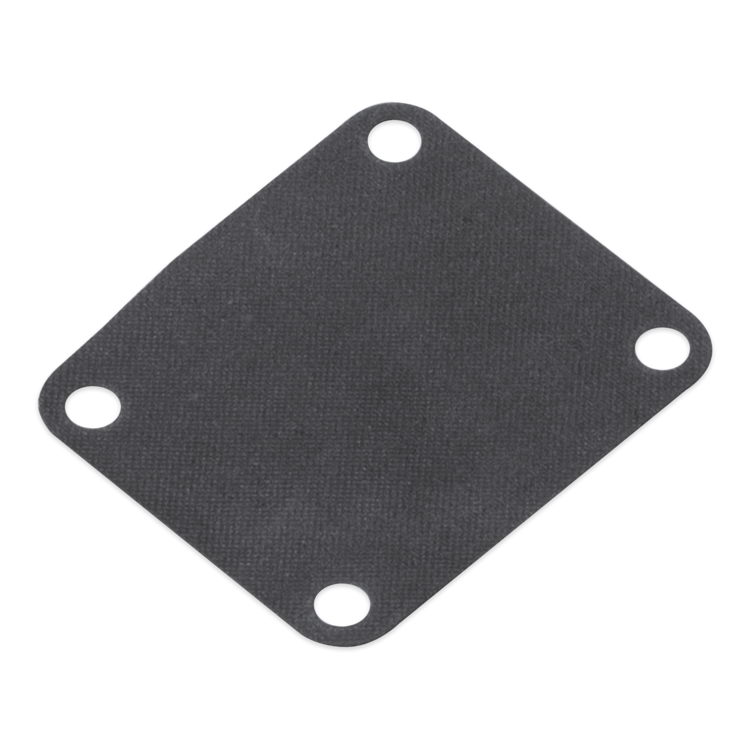

A square black fuel pump diaphragm with rounded corners and three pre-drilled holes, shown on a plain white background.

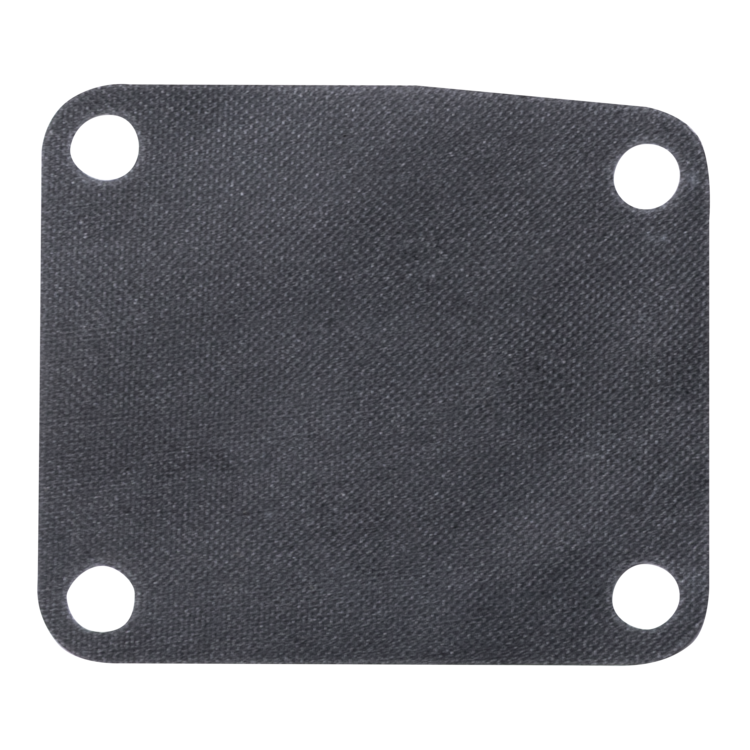

A square black fuel pump diaphragm with rounded corners and four pre-drilled holes, shown on a plain white background.
A square black fuel pump diaphragm with rounded corners and three pre-drilled holes, shown on a plain white background.
A square black fuel pump diaphragm with rounded corners and four pre-drilled holes, shown on a plain white background.
SKU 18-7833

Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7833

by SIERRA
Availability:
in stock, ready to be shipped
$16.49 - $16.49
$16.49
$16.49 - $16.49
$16.49

The 18-7833 fuel pump diaphragm for select Yamaha outboards and Mercury engines fits Yamaha 3 (1988-2002), 6 (1986-2000), 8 (1984-2009) engines and Mercury 6C, 6D, 8C engines. See OEM interchange and engine fitment for additional replacement details.

OEM INTERCHANGE

Mercury Marine: 11497M

Yamaha Outboard: 6G1-24471-00-00
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • For: Mercury 6C, 6D, 8C
  • For: Yamaha 3 (1988-2002), 6 (1986-2000), 8 (1984-2009)

Logistics

  • Dimensions parcel depth, ["]: 0.45007784
  • Dimensions parcel height, ["]: 4.05007064
  • Dimensions parcel width, ["]: 5.25006824
  • Parcel weight, [lbs]: 0

Engine Fitment for 18-7833

Brand Engine Model Year Serial Number Range Horsepower
Mercury Marine 6D 1978 6H6-001302-up 6
Mercury Marine 6D 1978 6H6-300406-up 6
Mercury Marine 6C 1978 6H8-000317-6H8-010381 6
Mercury Marine 6C 1978 6H8-010382-up 6
Mercury Marine 6C 1978 6H8-300171-6H8-306502 6
Mercury Marine 6C 1978 6H8-306503-up 6
Mercury Marine 8C 1984 6G1-700388-700865 8
Mercury Marine 8C 1984 6G1-305951-6G1-316711 8
Mercury Marine 8C 1984 6G1-007990-6G1-027237 8
Mercury Marine 8C 1985 6G1-007990-6G1-027237 8
Mercury Marine 8C 1985 6G1-305951-6G1-316711 8
Mercury Marine 8C 1985 6G1-700388-700865 8
Mercury Marine 6C 1986 6H8-300171-6H8-306502 6
Mercury Marine 6C 1986 6H8-306503-up 6
Mercury Marine 6C 1986 6H8-000317-6H8-010381 6
Mercury Marine 6C 1986 6H8-010382-up 6
Mercury Marine 6D 1986 6H6-001302-up 6
Mercury Marine 6D 1986 6H6-300406-up 6
Mercury Marine 8C 1986 6G1-700388-700865 8
Mercury Marine 8C 1986 6G1-7008786-up 8
Mercury Marine 8C 1986 6G1-027238-up 8
Mercury Marine 8C 1986 6G1-305951-6G1-316711 8
Mercury Marine 8C 1986 6G1-007990-6G1-027237 8
Mercury Marine 8C 1986 6G1-316712-up 8
Mercury Marine 8C 6G1-7008786-up 8
Mercury Marine 8C 6G1-027238-up 8
Mercury Marine 8C 6G1-316712-up 8
Yamaha Outboard 8LN 1984 — 8
Yamaha Outboard 8SN 1984 — 8
Yamaha Outboard 8SK 1985 — 8
Yamaha Outboard 8LK 1985 — 8
Yamaha Outboard 6LJ 1986 — 6
Yamaha Outboard 6SJ 1986 — 6
Yamaha Outboard 8LJ 1986 — 8
Yamaha Outboard 8SJ 1986 — 8
Yamaha Outboard 6SH 1987 — 6
Yamaha Outboard 6LH 1987 — 6
Yamaha Outboard 8LH 1987 — 8
Yamaha Outboard 8SH 1987 — 8
Yamaha Outboard 3LG 1988 — 3
Yamaha Outboard 3SG 1988 — 3
Yamaha Outboard 6LG 1988 — 6
Yamaha Outboard 6SG 1988 — 6
Yamaha Outboard 8LG 1988 — 8
Yamaha Outboard 8SG 1988 — 8
Yamaha Outboard 3LF 1989 — 3
Yamaha Outboard 3SF 1989 — 3
Yamaha Outboard 6LF 1989 — 6
Yamaha Outboard 6SF 1989 — 6
Yamaha Outboard 8LF 1989 — 8
Yamaha Outboard 8SF 1989 — 8
Yamaha Outboard 3LD 1990 — 3
Yamaha Outboard 3SD 1990 — 3
Yamaha Outboard 6LD 1990 — 6
Yamaha Outboard 6SD 1990 — 6
Yamaha Outboard 8LD 1990 — 8
Yamaha Outboard 8SD 1990 — 8
Yamaha Outboard 3MSHP 1991 — 3
Yamaha Outboard 3MLHP 1991 — 3
Yamaha Outboard 6MLHP 1991 — 6
Yamaha Outboard 6MSHP 1991 — 6
Yamaha Outboard 8MSHP 1991 — 8
Yamaha Outboard 8MLHP 1991 — 8
Yamaha Outboard 3MLHQ 1992 — 3
Yamaha Outboard 3MSHQ 1992 — 3
Yamaha Outboard 6MLHQ 1992 — 6
Yamaha Outboard 6MSHQ 1992 — 6
Yamaha Outboard 8MLHQ 1992 — 8
Yamaha Outboard 8MSHQ 1992 — 8
Yamaha Outboard 3MLHR 1993 — 3
Yamaha Outboard 3MSHR 1993 — 3
Yamaha Outboard 6MLHR 1993 — 6
Yamaha Outboard 6MSHR 1993 — 6
Yamaha Outboard 8MLHR 1993 — 8
Yamaha Outboard 8MSHR 1993 — 8
Yamaha Outboard 3MSHS 1994 — 3
Yamaha Outboard 3MLHS 1994 — 3
Yamaha Outboard 6MLHS 1994 — 6
Yamaha Outboard 6MSHS 1994 — 6
Yamaha Outboard 8MSHS 1994 — 8
Yamaha Outboard 8MLHS 1994 — 8
Yamaha Outboard 3MLHT 1995 — 3
Yamaha Outboard 3MSHT 1995 — 3
Yamaha Outboard 6MLHT 1995 — 6
Yamaha Outboard 6MSHT 1995 — 6
Yamaha Outboard 8MSHT 1995 — 8
Yamaha Outboard 8MLHT 1995 — 8
Yamaha Outboard 3MLHU 1996 — 3
Yamaha Outboard 3MSHU 1996 — 3
Yamaha Outboard 6MLHU 1996 — 6
Yamaha Outboard 6MSHU 1996 — 6
Yamaha Outboard 8MLHU 1996 — 8
Yamaha Outboard 8MSHU 1996 — 8
Yamaha Outboard 3MLHV 1997 — 3
Yamaha Outboard 3MSHV 1997 — 3
Yamaha Outboard 6MLHV 1997 — 6
Yamaha Outboard 6MSHV 1997 — 6
Yamaha Outboard 8MLHV 1997 — 8
Yamaha Outboard 8MSHV 1997 — 8
Yamaha Outboard 3MLHW 1998 — 3
Yamaha Outboard 3MSHW 1998 — 3
Yamaha Outboard 6MLHW 1998 — 6
Yamaha Outboard 6MSHW 1998 — 6
Yamaha Outboard 8MLHW 1998 — 8
Yamaha Outboard 8MSHW 1998 — 8
Yamaha Outboard 3MSHX 1999 — 3
Yamaha Outboard 3MLHX 1999 — 3
Yamaha Outboard 6MSHX 1999 — 6
Yamaha Outboard 6MLHX 1999 — 6
Yamaha Outboard 8MLHX 1999 — 8
Yamaha Outboard 8MSHX 1999 — 8
Yamaha Outboard 3MLHY 2000 — 3
Yamaha Outboard 3MSHY 2000 — 3
Yamaha Outboard 6MLHY 2000 — 6
Yamaha Outboard 6MSHY 2000 — 6
Yamaha Outboard 8MSHY 2000 — 8
Yamaha Outboard 8MLHY 2000 — 8
Yamaha Outboard 3MSHKZ 2001 — 3
Yamaha Outboard 3MSHZ 2001 — 3
Yamaha Outboard 8MSHZ 2001 — 8
Yamaha Outboard 3MSHA 2002 — 3
Yamaha Outboard 8MSHA 2002 — 8
Yamaha Outboard 8MSHB 2003 — 8
Yamaha Outboard 8MSHC 2004 — 8
Yamaha Outboard 8MSHD 2005 — 8
Yamaha Outboard 8MSH 2006-2005 — 8
Yamaha Outboard 8MSH 2006 — 8
Yamaha Outboard 8MSH 2007 — 8
Yamaha Outboard 8MSH 2008 — 8
Yamaha Outboard 8MSH 2009 — 8

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7833

Mercury Marine: 11497M

Yamaha Outboard: 6G1-24471-00-00
