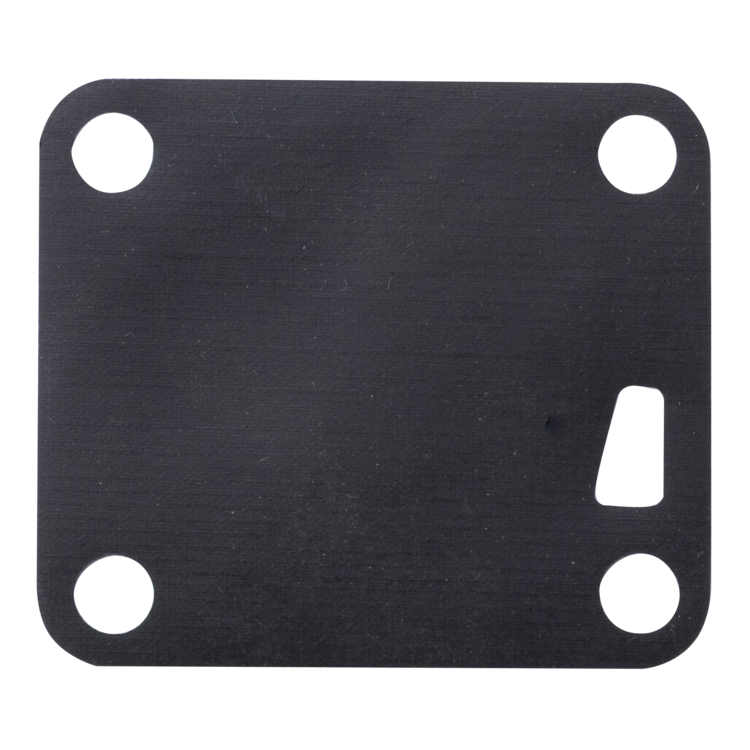

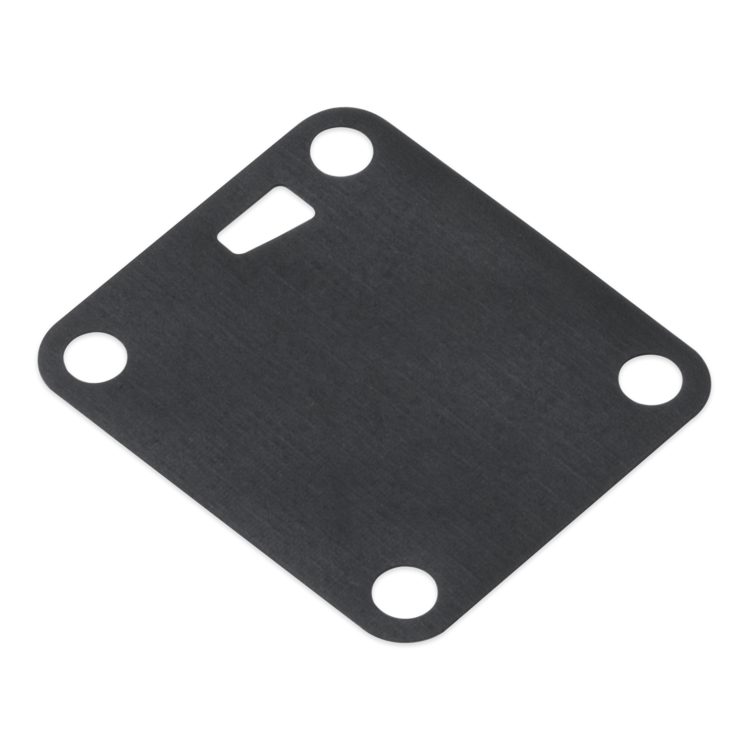

A black rectangular fuel pump diaphragm with rounded corners, four circular cutouts, and one diagonal slot cutout, shown on a plain white background.
A black rectangular fuel pump diaphragm with rounded corners, featuring four pre-drilled circular holes and a small slot cutout on the right side, shown against a plain white background.
A black rectangular fuel pump diaphragm with rounded corners, four circular cutouts, and one diagonal slot cutout, shown on a plain white background.
A black rectangular fuel pump diaphragm with rounded corners, featuring four pre-drilled circular holes and a small slot cutout on the right side, shown against a plain white background.
SKU 18-7837

Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7837

by SIERRA
Availability:
in stock, ready to be shipped
$12.49 - $12.49
$12.49
$12.49 - $12.49
$12.49

The Sierra 18-7837 fuel pump diaphragm for select Mercury and Yamaha outboard engines directly replaces Mercury 84262M and Yamaha 677-24411-01-00 & 677-24411-02-00 diaphragms. See OEM interchange and engine fitment for additional replacement details.

OEM INTERCHANGE

Mercury Marine: 84262M

Yamaha Outboard

  • 677-24411-01-00
  • 677-24411-02-00
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • For select Yamaha Outboard and Mercury engines. See engine application for additional details
  • Directly replaces select Mercury & Yamaha Outboard fuel pump diaphragms

Logistics

  • Dimensions parcel depth, ["]: 0.40007794
  • Dimensions parcel height, ["]: 3.95007084
  • Dimensions parcel width, ["]: 5.05006864
  • Parcel weight, [lbs]: 0.00882

Engine Fitment for 18-7837

Brand Engine Model Year Serial Number Range Horsepower
Mercury Marine 9.9C 1982 682-250946-up 9.9
Mercury Marine 9.9C 1982 682-552316-up 9.9
Mercury Marine 9.9C 1982 682-032886-up 9.9
Mercury Marine 9.9C 1982 682-338441-up 9.9
Mercury Marine 9.9C 1983 682-250946-up 9.9
Mercury Marine 9.9C 1983 682-032886-up 9.9
Mercury Marine 9.9C 1983 682-338441-up 9.9
Mercury Marine 9.9C 1983 682-552316-up 9.9
Mercury Marine 9.9C 1984 682-250946-up 9.9
Mercury Marine 9.9C 1984 682-032886-up 9.9
Mercury Marine 9.9C 1984 682-338441-up 9.9
Mercury Marine 9.9C 1984 682-552316-up 9.9
Mercury Marine W8 (SUL)(W/MARATHON) 1985 677-702821-up 8
Mercury Marine W8 (M)(W/MARATHON) 1985 677-057507-up 8
Mercury Marine W8 (ML)(W/MARATHON) 1985 677-383147-up 8
Mercury Marine 9.9C 1985 682-250946-up 9.9
Mercury Marine 9.9C 1985 682-032886-up 9.9
Mercury Marine 9.9C 1985 682-338441-up 9.9
Mercury Marine 9.9C 1985 682-552316-up 9.9
Mercury Marine W8 (ML)(W/MARATHON) 1986 677-383147-up 8
Mercury Marine W8 (SUL)(W/MARATHON) 1986 677-702821-up 8
Mercury Marine W8 (M)(W/MARATHON) 1986 677-057507-up 8
Mercury Marine 9.9C 1986 682-250946-up 9.9
Mercury Marine 9.9C 1986 682-032886-up 9.9
Mercury Marine 9.9C 1986 682-338441-up 9.9
Mercury Marine 9.9C 1986 682-552316-up 9.9
Mercury Marine K 40 H.P. 1989 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1989 6F5-000711-up 40
Mercury Marine K 40 H.P. 1989 6F5-301827-up 40
Mercury Marine K 40 H.P. 1990 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1990 6F5-301827-up 40
Mercury Marine K 40 H.P. 1990 6F5-000711-up 40
Mercury Marine K 40 H.P. 1991 6F5-000711-up 40
Mercury Marine K 40 H.P. 1991 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1991 6F5-301827-up 40
Mercury Marine K 40 H.P. 1992 6F5-000711-up 40
Mercury Marine K 40 H.P. 1992 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1992 6F5-301827-up 40
Mercury Marine K 40 H.P. 1993 6F5-000711-up 40
Mercury Marine K 40 H.P. 1993 6F5-301827-up 40
Mercury Marine K 40 H.P. 1993 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1994 6F5-000711-up 40
Mercury Marine K 40 H.P. 1994 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1994 6F5-301827-up 40
Mercury Marine K 40 H.P. 1995 6F5-301827-up 40
Mercury Marine K 40 H.P. 1995 6F5-000711-up 40
Mercury Marine K 40 H.P. 1995 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1996 6F5-000711-up 40
Mercury Marine K 40 H.P. 1996 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1996 6F5-301827-up 40
Mercury Marine K 40 H.P. 1997 6F5-301827-up 40
Mercury Marine K 40 H.P. 1997 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1997 6F5-000711-up 40
Mercury Marine K 40 H.P. 1998 6F5-301827-up 40
Mercury Marine K 40 H.P. 1998 6F5-000711-up 40
Mercury Marine K 40 H.P. 1998 6F5K-302372-up 40
Mercury Marine 8B 677-000101-up 8
Mercury Marine 8B 677-300101-up 8
Mercury Marine 15C M-684-000101-up 15
Mercury Marine 15C ML-684-300101-up 15
Mercury Marine 15C E-684-250101-up 15
Mercury Marine 15C EL-684-550101-up 15
Yamaha Outboard 9.9LN 1984 — 9.9
Yamaha Outboard 9.9SN 1984 — 9.9
Yamaha Outboard 9.9ELN 1984 — 9.9
Yamaha Outboard 9.9ESN 1984 — 9.9
Yamaha Outboard 15ELN 1984 — 15
Yamaha Outboard 15ESN 1984 — 15
Yamaha Outboard 15LN 1984 — 15
Yamaha Outboard 15SN 1984 — 15
Yamaha Outboard 9.9LK 1985 — 9.9
Yamaha Outboard 9.9ELK 1985 — 9.9
Yamaha Outboard 9.9ESK 1985 — 9.9
Yamaha Outboard 9.9SK 1985 — 9.9
Yamaha Outboard 15SK 1985 — 15
Yamaha Outboard 15LK 1985 — 15
Yamaha Outboard 15ESK 1985 — 15
Yamaha Outboard 9.9ELJ 1986 — 9.9
Yamaha Outboard 9.9ESJ 1986 — 9.9
Yamaha Outboard 9.9LJ 1986 — 9.9
Yamaha Outboard 9.9SJ 1986 — 9.9
Yamaha Outboard 15ELJ 1986 — 15
Yamaha Outboard 15ESJ 1986 — 15
Yamaha Outboard 15LJ 1986 — 15
Yamaha Outboard 15SJ 1986 — 15
Yamaha Outboard 9.9LH 1987 — 9.9
Yamaha Outboard 9.9ELH 1987 — 9.9
Yamaha Outboard 9.9ESH 1987 — 9.9
Yamaha Outboard 9.9SH 1987 — 9.9
Yamaha Outboard 15ELH 1987 — 15
Yamaha Outboard 15LH 1987 — 15
Yamaha Outboard 15ESH 1987 — 15
Yamaha Outboard 15SH 1987 — 15
Yamaha Outboard 9.9ELG 1988 — 9.9
Yamaha Outboard 9.9ESG 1988 — 9.9
Yamaha Outboard 9.9LG 1988 — 9.9
Yamaha Outboard 9.9SG 1988 — 9.9
Yamaha Outboard 15ELG 1988 — 15
Yamaha Outboard 15ESG 1988 — 15
Yamaha Outboard 15LG 1988 — 15
Yamaha Outboard 15SG 1988 — 15
Yamaha Outboard 25SG 1988 — 25
Yamaha Outboard 25ESG 1988 — 25
Yamaha Outboard 25ELG 1988 — 25
Yamaha Outboard 25LG 1988 — 25
Yamaha Outboard 9.9ELF 1989 — 9.9
Yamaha Outboard 9.9ESF 1989 — 9.9
Yamaha Outboard 9.9LF 1989 — 9.9
Yamaha Outboard 9.9SF 1989 — 9.9
Yamaha Outboard 15ELF 1989 — 15
Yamaha Outboard 15ESF 1989 — 15
Yamaha Outboard 15LF 1989 — 15
Yamaha Outboard 15SF 1989 — 15
Yamaha Outboard 25SF 1989 — 25
Yamaha Outboard 25ESF 1989 — 25
Yamaha Outboard 25LF 1989 — 25
Yamaha Outboard 25ELF 1989 — 25
Yamaha Outboard 9.9SD 1990 — 9.9
Yamaha Outboard 9.9ESD 1990 — 9.9
Yamaha Outboard 9.9ELD 1990 — 9.9
Yamaha Outboard 9.9LD 1990 — 9.9
Yamaha Outboard 15ESD 1990 — 15
Yamaha Outboard 15LD 1990 — 15
Yamaha Outboard 15SD 1990 — 15
Yamaha Outboard 15ELD 1990 — 15
Yamaha Outboard 25ELD 1990 — 25
Yamaha Outboard 25LD 1990 — 25
Yamaha Outboard 25ESD 1990 — 25
Yamaha Outboard 25SD 1990 — 25
Yamaha Outboard 9.9ESHP 1991 — 9.9
Yamaha Outboard 9.9MLHP 1991 — 9.9
Yamaha Outboard 9.9MSHP 1991 — 9.9
Yamaha Outboard 9.9ELHP 1991 — 9.9
Yamaha Outboard 15ELHP 1991 — 15
Yamaha Outboard 15ESHP 1991 — 15
Yamaha Outboard 15MLHP 1991 — 15
Yamaha Outboard 15MSHP 1991 — 15
Yamaha Outboard 25MLHP 1991 — 25
Yamaha Outboard 25MSHP 1991 — 25
Yamaha Outboard 25ELHP 1991 — 25
Yamaha Outboard 25ESHP 1991 — 25
Yamaha Outboard 25ELRP 1991 — 25
Yamaha Outboard 9.9MSHQ 1992 — 9.9
Yamaha Outboard 9.9ELHQ 1992 — 9.9
Yamaha Outboard 9.9MLHQ 1992 — 9.9
Yamaha Outboard 9.9ESHQ 1992 — 9.9
Yamaha Outboard 15ESHQ 1992 — 15
Yamaha Outboard 15MLHQ 1992 — 15
Yamaha Outboard 15MSHQ 1992 — 15
Yamaha Outboard 15ELHQ 1992 — 15
Yamaha Outboard 25ELHQ 1992 — 25
Yamaha Outboard 25ESHQ 1992 — 25
Yamaha Outboard 25MSHQ 1992 — 25
Yamaha Outboard 25ELRQ 1992 — 25
Yamaha Outboard 25MLHQ 1992 — 25
Yamaha Outboard 9.9MSHR 1993 — 9.9
Yamaha Outboard 9.9ELHR 1993 — 9.9
Yamaha Outboard 9.9MLHR 1993 — 9.9
Yamaha Outboard 9.9ESHR 1993 — 9.9
Yamaha Outboard 15ESHR 1993 — 15
Yamaha Outboard 15MLHR 1993 — 15
Yamaha Outboard 15MSHR 1993 — 15
Yamaha Outboard 15ELHR 1993 — 15
Yamaha Outboard 25ESHR 1993 — 25
Yamaha Outboard 25MSHR 1993 — 25
Yamaha Outboard 25ELHR 1993 — 25
Yamaha Outboard 25ELRR 1993 — 25
Yamaha Outboard 25MLHR 1993 — 25
Yamaha Outboard 9.9MLHS 1994 — 9.9
Yamaha Outboard 9.9MSHS 1994 — 9.9
Yamaha Outboard 9.9ESHS 1994 — 9.9
Yamaha Outboard 9.9ELHS 1994 — 9.9
Yamaha Outboard 15ELHS 1994 — 15
Yamaha Outboard 15ESHS 1994 — 15
Yamaha Outboard 15MLHS 1994 — 15
Yamaha Outboard 15MSHS 1994 — 15
Yamaha Outboard 25ELRS 1994 — 25
Yamaha Outboard 25MLHS 1994 — 25
Yamaha Outboard 25ELHS 1994 — 25
Yamaha Outboard 25ESHS 1994 — 25
Yamaha Outboard 25MSHS 1994 — 25
Yamaha Outboard 9.9MSHT 1995 — 9.9
Yamaha Outboard 9.9ESHT 1995 — 9.9
Yamaha Outboard 9.9ELHT 1995 — 9.9
Yamaha Outboard 9.9MLHT 1995 — 9.9
Yamaha Outboard 15ELHT 1995 — 15
Yamaha Outboard 15ESHT 1995 — 15
Yamaha Outboard 15MLHT 1995 — 15
Yamaha Outboard 15MSHT 1995 — 15
Yamaha Outboard 25MLHT 1995 — 25
Yamaha Outboard 25ELHT 1995 — 25
Yamaha Outboard 25ELRT 1995 — 25
Yamaha Outboard 25ESHT 1995 — 25
Yamaha Outboard 25MSHT 1995 — 25
Yamaha Outboard 20MLHU 1996 — 20
Yamaha Outboard 20MSHU 1996 — 20
Yamaha Outboard 25ELHU 1996 — 25
Yamaha Outboard 25MSHU 1996 — 25
Yamaha Outboard 25ELRU 1996 — 25
Yamaha Outboard 25ESHU 1996 — 25
Yamaha Outboard 25MLHU 1996 — 25
Yamaha Outboard 25MLHU2 1996 — 25
Yamaha Outboard 25MSHU2 1996 — 25
Yamaha Outboard 20MLHV 1997 — 20
Yamaha Outboard 20MSHV 1997 — 20
Yamaha Outboard 25ELHV 1997 — 25
Yamaha Outboard 25ELRV 1997 — 25
Yamaha Outboard 25ESHV 1997 — 25
Yamaha Outboard 25MLHV2 1997 — 25
Yamaha Outboard 25MSHV2 1997 — 25
Yamaha Outboard 25ELHW 1998 — 25
Yamaha Outboard 25ESHW 1998 — 25
Yamaha Outboard 25MLHW 1998 — 25
Yamaha Outboard 25MSHW 1998 — 25
Yamaha Outboard 25ELRW 1998 — 25
Yamaha Outboard 25ELHX 1999 — 25
Yamaha Outboard 25ELRX 1999 — 25
Yamaha Outboard 25ESHX 1999 — 25
Yamaha Outboard 25MLHX 1999 — 25
Yamaha Outboard 25MSHX 1999 — 25
Yamaha Outboard 25MLHY 2000 — 25
Yamaha Outboard 25MSHY 2000 — 25
Yamaha Outboard 25MSHKZ 2001 — 25
Yamaha Outboard 25MLHKZ 2001 — 25
Yamaha Outboard 25MLHZ 2001 — 25
Yamaha Outboard 25MSHZ 2001 — 25
Yamaha Outboard 25MSHA 2002 — 25
Yamaha Outboard 25MSHB 2003 — 25
Yamaha Outboard 25MSHC 2004 — 25
Yamaha Outboard 25MSHD 2005 — 25
Yamaha Outboard 25MSH 2006-2005 — 25
Yamaha Outboard 25ELR 2006-2005 — 25
Yamaha Outboard 25ESR 2006-2005 — 25
Yamaha Outboard 25ELH 2006-2005 — 25
Yamaha Outboard 25ESH 2006-2005 — 25
Yamaha Outboard 25MLH 2006-2005 — 25
Yamaha Outboard 25ESR 2006 — 25
Yamaha Outboard 25MSH 2006 — 25
Yamaha Outboard 25ELH 2006 — 25
Yamaha Outboard 25MLH 2006 — 25
Yamaha Outboard 25ESH 2006 — 25
Yamaha Outboard 25ELR 2006 — 25
Yamaha Outboard 25ELH 2007 — 25
Yamaha Outboard 25MLH 2007 — 25
Yamaha Outboard 25ELR 2007 — 25
Yamaha Outboard 25ESH 2007 — 25
Yamaha Outboard 25ESR 2007 — 25
Yamaha Outboard 25MSH 2007 — 25
Yamaha Outboard 25ESH 2008 — 25
Yamaha Outboard 25MSH 2008 — 25
Yamaha Outboard 25ESR 2008 — 25
Yamaha Outboard 25MLH 2008 — 25
Yamaha Outboard 25ELR 2008 — 25
Yamaha Outboard 25ELH 2008 — 25
Yamaha Outboard 25ELH 2009 — 25
Yamaha Outboard 25ELR 2009 — 25
Yamaha Outboard 25MSH 2009 — 25
Yamaha Outboard 25ESH 2009 — 25
Yamaha Outboard 25MLH 2009 — 25

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7837

Mercury Marine: 84262M

Yamaha Outboard

  • 677-24411-01-00
  • 677-24411-02-00

*Can't find what you're looking for? Search the entire SIERRA catalog with our parts-finder tool

60 YEARS OF SIERRA

SIERRA has a 60-year history as a leading global manufacturer of aftermarket engine and drive parts for the marine industry. The SIERRA brand encompasses the full SIERRA Marine product lines, as well as expansive brands formerly known as Shields and Moeller.

Learn More
