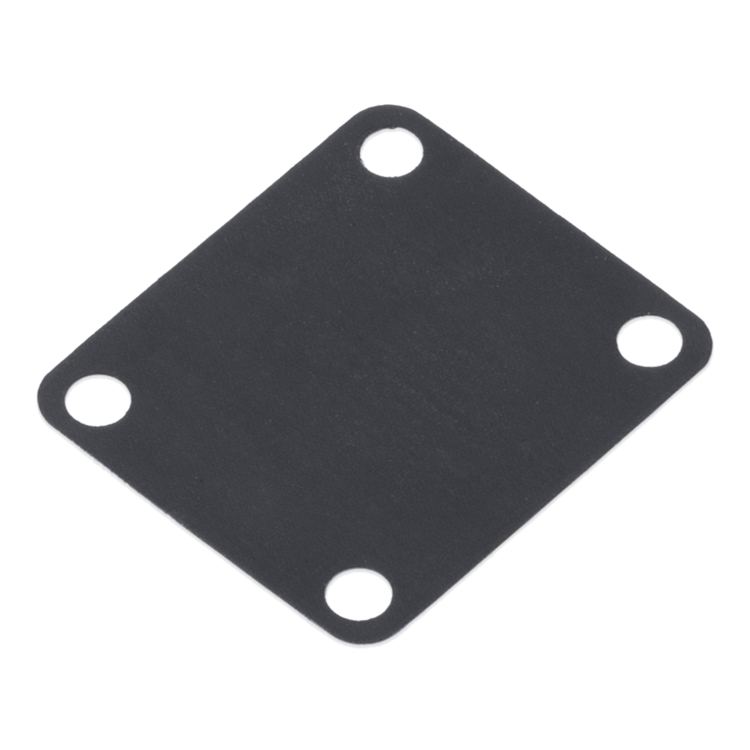

A black square fuel pump diaphragm with rounded corners and four pre-drilled holes, shown on a plain white background.

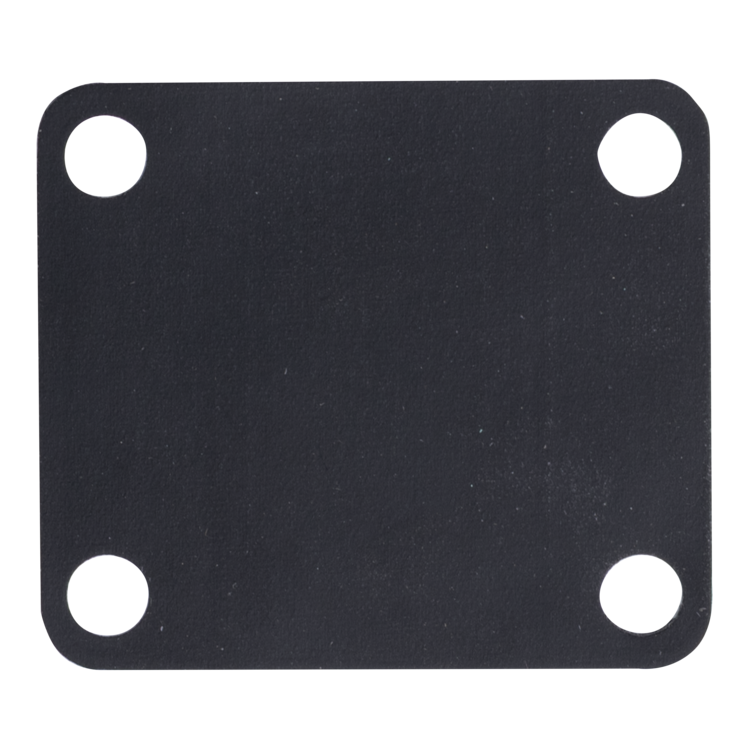

A square black fuel pump diaphragm with rounded corners and four evenly spaced circular holes, shown on a plain white background.
A black square fuel pump diaphragm with rounded corners and four pre-drilled holes, shown on a plain white background.
A square black fuel pump diaphragm with rounded corners and four evenly spaced circular holes, shown on a plain white background.
SKU 18-7838

Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7838

by SIERRA
Availability:
in stock, ready to be shipped
$11.09 - $11.09
$11.09
$11.09 - $11.09
$11.09

The Sierra 18-7838 fuel pump diaphragm for select Yamaha outboards and Mercury engines directly replaces GLM 40130, Mercury 84265M, and Yamaha Outboard 677-24471-01-00 diaphragms. See OEM interchange and engine fitment for additional replacement details.

OEM INTERCHANGE

GLM: 40130

Mercury Marine: 84265M

Yamaha Outboard: 677-24471-01-00
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • For select Yamaha Outboard and Mercury engines. See engine application for additional details
  • Directly replaces select GLM, Mercury & Yamaha Outboard fuel pump diaphragms

Logistics

  • Dimensions parcel depth, ["]: 0.25007824
  • Dimensions parcel height, ["]: 3.95007084
  • Dimensions parcel width, ["]: 5.30006814
  • Parcel weight, [lbs]: 0

Engine Fitment for 18-7838

Brand Engine Model Year Serial Number Range Horsepower
Mercury Marine 9.9C 1982 682-250946-up 9.9
Mercury Marine 9.9C 1982 682-552316-up 9.9
Mercury Marine 9.9C 1982 682-032886-up 9.9
Mercury Marine 9.9C 1982 682-338441-up 9.9
Mercury Marine 9.9C 1983 682-250946-up 9.9
Mercury Marine 9.9C 1983 682-032886-up 9.9
Mercury Marine 9.9C 1983 682-338441-up 9.9
Mercury Marine 9.9C 1983 682-552316-up 9.9
Mercury Marine 9.9C 1984 682-250946-up 9.9
Mercury Marine 9.9C 1984 682-032886-up 9.9
Mercury Marine 9.9C 1984 682-338441-up 9.9
Mercury Marine 9.9C 1984 682-552316-up 9.9
Mercury Marine W8 (SUL)(W/MARATHON) 1985 677-702821-up 8
Mercury Marine W8 (M)(W/MARATHON) 1985 677-057507-up 8
Mercury Marine W8 (ML)(W/MARATHON) 1985 677-383147-up 8
Mercury Marine 9.9C 1985 682-250946-up 9.9
Mercury Marine 9.9C 1985 682-032886-up 9.9
Mercury Marine 9.9C 1985 682-338441-up 9.9
Mercury Marine 9.9C 1985 682-552316-up 9.9
Mercury Marine W8 (ML)(W/MARATHON) 1986 677-383147-up 8
Mercury Marine W8 (SUL)(W/MARATHON) 1986 677-702821-up 8
Mercury Marine W8 (M)(W/MARATHON) 1986 677-057507-up 8
Mercury Marine 9.9C 1986 682-250946-up 9.9
Mercury Marine 9.9C 1986 682-032886-up 9.9
Mercury Marine 9.9C 1986 682-338441-up 9.9
Mercury Marine 9.9C 1986 682-552316-up 9.9
Mercury Marine K 40 H.P. 1989 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1989 6F5-000711-up 40
Mercury Marine K 40 H.P. 1989 6F5-301827-up 40
Mercury Marine K 40 H.P. 1990 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1990 6F5-301827-up 40
Mercury Marine K 40 H.P. 1990 6F5-000711-up 40
Mercury Marine K 40 H.P. 1991 6F5-000711-up 40
Mercury Marine K 40 H.P. 1991 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1991 6F5-301827-up 40
Mercury Marine K 40 H.P. 1992 6F5-000711-up 40
Mercury Marine K 40 H.P. 1992 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1992 6F5-301827-up 40
Mercury Marine K 40 H.P. 1993 6F5-000711-up 40
Mercury Marine K 40 H.P. 1993 6F5-301827-up 40
Mercury Marine K 40 H.P. 1993 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1994 6F5-000711-up 40
Mercury Marine K 40 H.P. 1994 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1994 6F5-301827-up 40
Mercury Marine K 40 H.P. 1995 6F5-301827-up 40
Mercury Marine K 40 H.P. 1995 6F5-000711-up 40
Mercury Marine K 40 H.P. 1995 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1996 6F5-000711-up 40
Mercury Marine K 40 H.P. 1996 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1996 6F5-301827-up 40
Mercury Marine K 40 H.P. 1997 6F5-301827-up 40
Mercury Marine K 40 H.P. 1997 6F5K-302372-up 40
Mercury Marine K 40 H.P. 1997 6F5-000711-up 40
Mercury Marine K 40 H.P. 1998 6F5-301827-up 40
Mercury Marine K 40 H.P. 1998 6F5-000711-up 40
Mercury Marine K 40 H.P. 1998 6F5K-302372-up 40
Mercury Marine 8B 677-000101-up 8
Mercury Marine 8B 677-300101-up 8
Mercury Marine 15C M-684-000101-up 15
Mercury Marine 15C ML-684-300101-up 15
Mercury Marine 15C E-684-250101-up 15
Mercury Marine 15C EL-684-550101-up 15
Yamaha Outboard 9.9LN 1984 — 9.9
Yamaha Outboard 9.9SN 1984 — 9.9
Yamaha Outboard 9.9ELN 1984 — 9.9
Yamaha Outboard 9.9ESN 1984 — 9.9
Yamaha Outboard 15ELN 1984 — 15
Yamaha Outboard 15ESN 1984 — 15
Yamaha Outboard 15LN 1984 — 15
Yamaha Outboard 15SN 1984 — 15
Yamaha Outboard 9.9LK 1985 — 9.9
Yamaha Outboard 9.9ELK 1985 — 9.9
Yamaha Outboard 9.9ESK 1985 — 9.9
Yamaha Outboard 9.9SK 1985 — 9.9
Yamaha Outboard 15SK 1985 — 15
Yamaha Outboard 15LK 1985 — 15
Yamaha Outboard 15ESK 1985 — 15
Yamaha Outboard 9.9ELJ 1986 — 9.9
Yamaha Outboard 9.9ESJ 1986 — 9.9
Yamaha Outboard 9.9LJ 1986 — 9.9
Yamaha Outboard 9.9SJ 1986 — 9.9
Yamaha Outboard 15ELJ 1986 — 15
Yamaha Outboard 15ESJ 1986 — 15
Yamaha Outboard 15LJ 1986 — 15
Yamaha Outboard 15SJ 1986 — 15
Yamaha Outboard 9.9LH 1987 — 9.9
Yamaha Outboard 9.9ELH 1987 — 9.9
Yamaha Outboard 9.9ESH 1987 — 9.9
Yamaha Outboard 9.9SH 1987 — 9.9
Yamaha Outboard 15ELH 1987 — 15
Yamaha Outboard 15LH 1987 — 15
Yamaha Outboard 15ESH 1987 — 15
Yamaha Outboard 15SH 1987 — 15
Yamaha Outboard 9.9ELG 1988 — 9.9
Yamaha Outboard 9.9ESG 1988 — 9.9
Yamaha Outboard 9.9LG 1988 — 9.9
Yamaha Outboard 9.9SG 1988 — 9.9
Yamaha Outboard 15ELG 1988 — 15
Yamaha Outboard 15ESG 1988 — 15
Yamaha Outboard 15LG 1988 — 15
Yamaha Outboard 15SG 1988 — 15
Yamaha Outboard 9.9ELF 1989 — 9.9
Yamaha Outboard 9.9ESF 1989 — 9.9
Yamaha Outboard 9.9LF 1989 — 9.9
Yamaha Outboard 9.9SF 1989 — 9.9
Yamaha Outboard 15ELF 1989 — 15
Yamaha Outboard 15ESF 1989 — 15
Yamaha Outboard 15LF 1989 — 15
Yamaha Outboard 15SF 1989 — 15
Yamaha Outboard 9.9SD 1990 — 9.9
Yamaha Outboard 9.9ESD 1990 — 9.9
Yamaha Outboard 9.9ELD 1990 — 9.9
Yamaha Outboard 9.9LD 1990 — 9.9
Yamaha Outboard 15ESD 1990 — 15
Yamaha Outboard 15LD 1990 — 15
Yamaha Outboard 15SD 1990 — 15
Yamaha Outboard 15ELD 1990 — 15
Yamaha Outboard 9.9ESHP 1991 — 9.9
Yamaha Outboard 9.9MLHP 1991 — 9.9
Yamaha Outboard 9.9MSHP 1991 — 9.9
Yamaha Outboard 9.9ELHP 1991 — 9.9
Yamaha Outboard 15ELHP 1991 — 15
Yamaha Outboard 15ESHP 1991 — 15
Yamaha Outboard 15MLHP 1991 — 15
Yamaha Outboard 15MSHP 1991 — 15
Yamaha Outboard 9.9MSHQ 1992 — 9.9
Yamaha Outboard 9.9ELHQ 1992 — 9.9
Yamaha Outboard 9.9MLHQ 1992 — 9.9
Yamaha Outboard 9.9ESHQ 1992 — 9.9
Yamaha Outboard 15ESHQ 1992 — 15
Yamaha Outboard 15MLHQ 1992 — 15
Yamaha Outboard 15MSHQ 1992 — 15
Yamaha Outboard 15ELHQ 1992 — 15
Yamaha Outboard 9.9MSHR 1993 — 9.9
Yamaha Outboard 9.9ELHR 1993 — 9.9
Yamaha Outboard 9.9MLHR 1993 — 9.9
Yamaha Outboard 9.9ESHR 1993 — 9.9
Yamaha Outboard 15ESHR 1993 — 15
Yamaha Outboard 15MLHR 1993 — 15
Yamaha Outboard 15MSHR 1993 — 15
Yamaha Outboard 15ELHR 1993 — 15
Yamaha Outboard 9.9MLHS 1994 — 9.9
Yamaha Outboard 9.9MSHS 1994 — 9.9
Yamaha Outboard 9.9ESHS 1994 — 9.9
Yamaha Outboard 9.9ELHS 1994 — 9.9
Yamaha Outboard 15ELHS 1994 — 15
Yamaha Outboard 15ESHS 1994 — 15
Yamaha Outboard 15MLHS 1994 — 15
Yamaha Outboard 15MSHS 1994 — 15
Yamaha Outboard 9.9MSHT 1995 — 9.9
Yamaha Outboard 9.9ESHT 1995 — 9.9
Yamaha Outboard 9.9ELHT 1995 — 9.9
Yamaha Outboard 9.9MLHT 1995 — 9.9
Yamaha Outboard 15ELHT 1995 — 15
Yamaha Outboard 15ESHT 1995 — 15
Yamaha Outboard 15MLHT 1995 — 15
Yamaha Outboard 15MSHT 1995 — 15

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Yamaha Outboard & Mercury Fuel Pump Diaphragm | 18-7838

GLM: 40130

Mercury Marine: 84265M

Yamaha Outboard: 677-24471-01-00

*Can't find what you're looking for? Search the entire SIERRA catalog with our parts-finder tool
