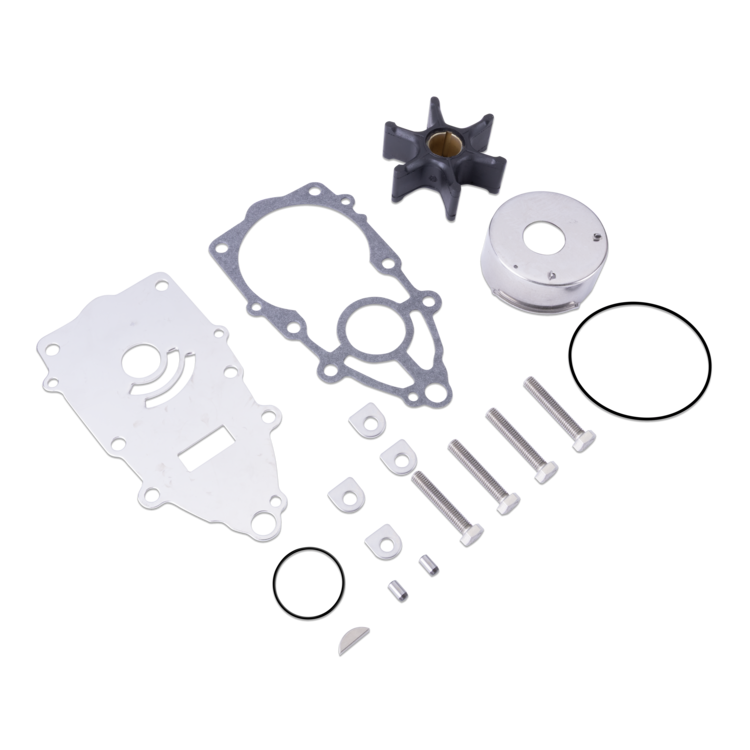

Engine gasket kit with various metal parts including a water pump, gaskets, O-rings, and screws arranged on a white background.
SKU 18-3515

Yamaha Outboard Water Pump Repair Kit | 18-3515

by SIERRA
Availability:
in stock, ready to be shipped
$127.89 - $127.89
$127.89
$127.89 - $127.89
$127.89

The Sierra 18-3515 water pump repair kit for Yamaha outboard F225 (2007-09), F250/LF250 (2006-2018), Z300/LZ300 (2006) engines includes impeller, impeller key, gasket and o-rings - everything you need to stay on the water longer. See OEM interchange and engine fitment for additional details.

Kit Includes

  • Pin, Dowel
  • Washer, Bolt
  • Gasket, Water Pump | 18-0406
  • Bolt | 18-0256
  • Impeller | 18-3071
  • Water Pump Housing Insert Cup | 18-3519
  • Impeller Key | 18-3302
  • O-Ring | 18-7485
  • O-Ring | 18-7483
  • Water Pump Base Outer Plate | 18-3518
OEM INTERCHANGE

Yamaha Outboard: 6P2-W0078-00-00
A black padlock icon centered inside a black circle on a transparent checkerboard background.

Warranty

Sierra's limited lifetime warranty. Read more about warranty policies here.

California Proposition 65 Warning WARNING Cancer or Reproductive Harm — www.P65Warnings.ca.gov
  • Fits: Yamaha F225 (2007-09), F250/LF250 (2006-2018), Z300/LZ300 (2006)
  • O-Ring | 18-7485
  • Kit Includes:
  • Pin, Dowel
  • Washer, Bolt
  • Gasket, Water Pump | 18-0406
  • Bolt | 18-0256
  • Impeller | 18-3071
  • Water Pump Housing Insert Cup | 18-3519
  • Impeller Key | 18-3302

Logistics

  • Dimensions parcel depth, ["]: 4.80006914
  • Dimensions parcel height, ["]: 4.90006894
  • Dimensions parcel width, ["]: 9.00006074
  • Parcel weight, [lbs]: 1.38474

Engine Fitment for 18-3515

Brand Engine Model Year Serial Number Range Horsepower
Yamaha Outboard F225TLR 2006-2007 — 225
Yamaha Outboard F250BTUR 2006-2008 — 250
Yamaha Outboard F250BTXR 2006-2008 — 250
Yamaha Outboard F250UA 2006-2012 — 250
Yamaha Outboard LF250UA 2006-2012 — 250
Yamaha Outboard LF250BTXR 2006-2008 — 250
Yamaha Outboard LF250XA 2006-2012 — 250
Yamaha Outboard F250XA 2006-2012 — 250
Yamaha Outboard LF250BTUR 2006-2008 — 250
Yamaha Outboard F250TUR 2006 — 250
Yamaha Outboard LF250TUR 2006 — 250
Yamaha Outboard F250TXR 2006 — 250
Yamaha Outboard LF250TXR 2006 — 250
Yamaha Outboard LZ300TUR 2006 — 300
Yamaha Outboard Z300TUR 2006 — 300
Yamaha Outboard LZ300TXR 2006 — 300
Yamaha Outboard Z300TXR 2006 — 300
Yamaha Outboard F250TXR 2007 — 250
Yamaha Outboard LF250TUR 2007 — 250
Yamaha Outboard F250TUR 2007 — 250
Yamaha Outboard LF250TXR 2007 — 250
Yamaha Outboard F225TLR 2008 — 225
Yamaha Outboard F250TUR 2008 — 250
Yamaha Outboard LF250TUR 2008 — 250
Yamaha Outboard F250TXR 2008 — 250
Yamaha Outboard LF250TXR 2008 — 250
Yamaha Outboard F225TLR 2009 — 225
Yamaha Outboard LF250TUR 2009 — 250
Yamaha Outboard F250TXR 2009 — 250
Yamaha Outboard F250TUR 2009 — 250
Yamaha Outboard LF250BTXR 2009 — 250
Yamaha Outboard LF250BTUR 2009 — 250
Yamaha Outboard LF250TXR 2009 — 250
Yamaha Outboard F250BTUR 2009 — 250
Yamaha Outboard F250BTXR 2009 — 250
Yamaha Outboard LF250TXR 2010 — 250
Yamaha Outboard F250TUR 2010 — 250
Yamaha Outboard LF250TUR 2010 — 250
Yamaha Outboard F250TXR 2010 — 250
Yamaha Outboard LF250TUR 2011 — 250
Yamaha Outboard F250TUR 2011 — 250
Yamaha Outboard LF250TXR 2011 — 250
Yamaha Outboard F250TXR 2011 — 250
Yamaha Outboard F250UA 2013 — 250
Yamaha Outboard F250XA 2013 — 250
Yamaha Outboard LF250UA 2013 — 250
Yamaha Outboard LF250XA 2013 — 250
Yamaha Outboard F250XA 2014 — 250
Yamaha Outboard LF250XA 2014 — 250
Yamaha Outboard F250XA 2015 — 250
Yamaha Outboard LF250XA 2015 — 250
Yamaha Outboard LF250XA 2016 — 250
Yamaha Outboard F250XA 2016 — 250
Yamaha Outboard LF250XA 2017 — 250
Yamaha Outboard F250XA 2017 — 250
Yamaha Outboard LF250XA 2018 — 250
Yamaha Outboard F250XA 2018 — 250

Free Shipping

When you spend $50+

Contact Support

Talk to a real human on our team

Find a Dealer

Find your local SIERRA or Dometic dealer

Interchange for Yamaha Outboard Water Pump Repair Kit | 18-3515

Yamaha Outboard: 6P2-W0078-00-00
